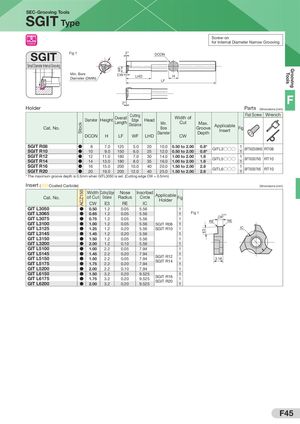

SGITSEC-Grooving Tools

Screw-on for Internal Diameter Narrow Grooving Internal

SGIT Fig 1 2°

DCON

Small Diameter Internal Grooving

Min. Bore CW LHD H Diameter (DMIN) LF

F

2°

Holder Parts

Dimensions (mm) Cutting Flat Screw Wrench Width of

Diameter Height Overall Edge Head

Length Distance Min. Cut Max.

Applicable

Cat. No. Bore Groove Fig

Insert Diameter Depth

DCON H LF WF LHD CW

SGIT R08 8 7.0 125 5.0 20 10.0 0.50 to 2.00 0.8* 1

GITL3○○○ BFTX02506NS RT08

SGIT R10109.01506.02512.00.50 to 2.000.8*1
SGIT R121211.01807.03014.01.00 to 2.001.81

GITL5○○○ BFTX0307NS RT10

SGIT R141413.01808.03516.01.00 to 2.001.81
SGIT R161615.020010.04020.01.50 to 2.002.81

GITL6○○○ BFTX0307NS RT10

SGIT R20 20 19.0 200 12.0 40 25.0 1.50 to 2.00 2.8 1

* The maximum groove depth is 0.5mm when GITL3050 is set. (Cutting edge CW = 0.5mm) Insert ( Coated Carbide) Dimensions (mm)

Width Cutting EdgeNoseInscribed
of CutDistanceRadiusCircleApplicable

Cat. No. Holder Fig

CWE3REIC
GIT L30500.501.20.055.561
GIT L30650.651.20.055.561Fig 1

+0.05

GIT L3075 0.75 1.2 0.05 5.56 1 CW 0

GIT L3100 RE RE

  • 1.00 1.2 0.05 5.56 SGIT R08 1
GIT L31251.251.20.205.56SGIT R10IC 1
GIT L31451.451.20.205.561
GIT L31501.501.20.055.561
GIT L32002.001.20.105.561
GIT L51001.002.20.057.941
GIT L51451.452.20.207.941
GIT L5150SGIT R12
1.502.20.057.943.18 1

GIT L5175 SGIT R14

  • 1.75 2.2 0.20 7.94 1
GIT L52002.002.20.107.941
GIT L61501.503.20.209.5251
GIT L61751.753.20.209.525SGIT R161

GIT L6200 SGIT R20

  • 2.00 3.2 0.20 9.525 1
