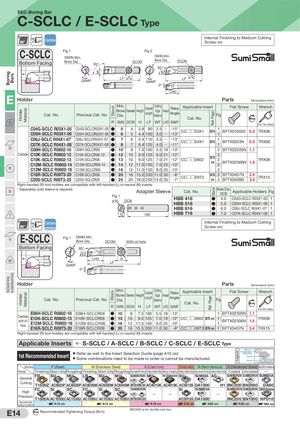

SEC-Boring Bar C-SCLC / E-SCLC Type 95° Internal Finishing to Medium Cutting Carbide Screw-on C-SCLC Fig 1 Fig 2 DMIN Min. DMIN Min. Bore Dia. DCON Bore Dia. DCON Bottom Facing 95° 95° WF WF Boring Bars H H LF LF GAMF GAMF 0° LHD E Holder Min. Cutting Rake Applicable Insert Parts Flat Screw Dimensions (mm) Wrench Stock Overall Material Bore Diameter Height Edge Head Holder Length Angle Ref. Page Cat. No. Previous Cat. No. Dia. Distance Fig Cat. No. Nm C R DMIN DCON H LF WF LHD GAMF (For Torx Holes) C04G-SCLC R03X1-05* C04G-SCLCR03X1-05* ● 5 4 3.8 90 2.5 Q -15° 1 CC□□03X1 B74 BFTX016033 0.2 TRX06 C05H-SCLC R03X1-06* C05H-SCLCR03X1-06* ● 6 5 4.4 100 3.0 Q -13° 1 C06J-SCLC R04X1-07* C06J-SCLCR04X1-07* ● 7 6 5.4 110 3.5 Q -13° 1 CC□□04X1 B74 BFTX0203N 0.5 TRX06 C07K-SCLC R04X1-08* C07K-SCLCR04X1-08* ● 8 7 6.4 125 4.0 Q -11° 1 D C08H-SCLC R0602-10 C08H-SCLCR06 ● 10 8 7.0 100 5.5 19 -13° 2 BFTX02505N 1.1 Carbide C10K-SCLC R0602-12 C10K-SCLCR06-12 ● 12 10 9.0 125 6.0 21 -12° 2 B75 C10K-SCLC R0602-13 C10K-SCLCR06 ● 13 10 9.0 125 7.0 21 -12° CC□□0602 2 TRX08 on BFTX02506N 1.5 C12M-SCLC R0602-14 C12M-SCLCR06-14 ● 14 12 11.0 150 7.0 25 -10° 2 R C12M-SCLC R0602-16 C12M-SCLCR06 ● 16 12 11.0 150 9.0 25 -10° 2 C16R-SCLC R09T3-20 C16R-SCLCR09 ● 20 16 15.0 200 11.0 30 -8° B78 2 BFTX0407N 3.4 CC□□09T3 TRX15 C20S-SCLC R09T3-25 C20S-SCLCR09 ● 25 20 18.0 250 13.0 35 -7° on 2 BFTX0409N 3.4 Right-handed (R) tool holders are compatible with left-handed (L) or neutral (N) inserts. * Separately sold sleeve is required. Bore Dia. Stock S Adapter Sleeve Cat. No. DCB Applicable Holders Fig Fig 1 ø16 DCB HBB 416 ● 4.0 C04G-SCLC R03X1-05 1 HBB 516 ● 5.0 C05H-SCLC R03X1-06 1 HBB 616 ● 6.0 C06J-SCLC R04X1-07 1 T 15 100 HBB 716 ● 7.0 C07K-SCLC R04X1-08 1 95° Carbide Internal Finishing to Medium Cutting Coolant Hole Screw-on V E-SCLC Fig 1 DMIN Min. Bore Dia. DCON With oil hole Bottom Facing 95° WF LHD H W LF GAMF 0° Very Small Diameter Turning Small Diameter Turning Holder Parts Dimensions (mm) Min. Cutting Rake Applicable Insert Flat Screw Wrench Stock Overall Material Bore Diameter Height Edge Head Holder Length Angle Ref. Page Cat. No. Previous Cat. No. Dia. Distance Fig Cat. No. Nm R DMIN DCON H LF WF LHD GAMF (For Torx Holes) E08H-SCLC R0602-10 E08H-SCLCR06 ● 10 8 7.5 100 5.5 18 -13° 1 BFTX02505N 1.1 Carbide E10K-SCLC R0602-13 E10K-SCLCR06 ● 13 10 9.5 125 7.0 19 -12° CC□□0602 B75 on 1 TRX08 with oil BFTX02506N 1.5 hole E12M-SCLC R0602-16 E12M-SCLCR06 ● 16 12 11.5 150 9.0 25 -10° 1 E16R-SCLC R09T3-20 E16R-SCLCR09 ● 20 16 15.5 200 11.0 30 -8° CC□□09T3 B78 on 1 BFTX0407N 3.4 TRX15 Right-handed (R) tool holders are compatible with left-handed (L) or neutral (N) inserts. Applicable Inserts S-SCLC / A-SCLC / B-SCLC / C-SCLC / E-SCLC Type Name of Chipbreaker/ GU Legend ● Refer as well to the Insert Selection Guide (page A10 on). 1st Recommended Insert CBN/PCD Photo ● Some combinations need to be made to order or cannot be manufactured. Grade AC8025P Cutting Range P (Steel) M (Stainless Steel) K (Cast Iron) S (Exotic Alloy) N (Non-ferrous) H (Hardened Steel) Hard Brittle Material Process Finishing Medium Cutting Roughing Finishing Medium Cutting Roughing High-speed Finishing Finishing to Medium Cutting Medium to Roughing Finishing to Medium Cutting High-precision/Finishing Finishing to Medium Cutting Coated Uncoated — FB SU MU LB SU MU SUMIBORON MU No Chipbreaker SU SUMIDIA AG SUMIBORON SUMIBORON SUMIDIA General Cutting T1500Z AC8025P AC8025P AC6030M AC6030M AC6040M BN7000/BNC500 AC4015K AC4015K AC5015S DA1000 H1 BNC2020 BN2000 DA90 FC SI SC FC SI SC SUMIBORON SI SUMIDIA SUMIBORON SUMIBORON SUMIDIA Binderless High — — — Precision T1500A AC1030U AC1030U AC1030U AC1030U AC1030U BN7000/BNC500 AC5015S DA1000 BNC2010 BN1000 NPD10 Recommended Cutting Conditions A10 on A14 on A16 on A18 on A22 on A20 on M2 on BNC500 is for ductile cast iron. E14 N m Recommended Tightening Torque (N·m)
