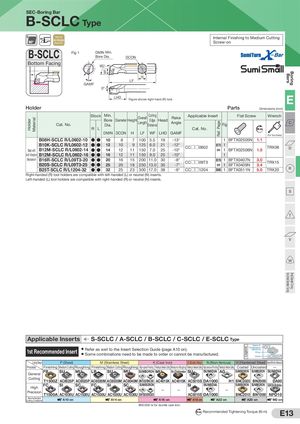

Общий каталог Sumitomo 2019 - 2020 - страница 257

SEC-Boring Bar B-SCLC Type 95° Steel with Internal Finishing to Medium Cutting Anti-Vibration Mechanism Screw-on B-SCLC Fig 1 DMIN Min. Bore Dia. DCON Bottom Facing 95° WF Boring Bars H LF GAMF 0° Holder LHD Figure shows right-hand (R) tool. Parts Dimensions (mm) E Stock Min. Overall Cutting Rake Applicable Insert Flat Screw Wrench Material Bore Diameter Height Edge Head Holder Length Angle C Ref. Page Cat. No. Dia. Distance Fig R L Cat. No. Nm DMIN DCON H LF WF LHD GAMF (For Torx Holes) B08H-SCLC R/L0602-10 ● ● 10 8 7 100 5.5 19 -13° 1 BFTX02505N 1.1 B10K-SCLC R/L0602-12 ● ● 12 10 9 125 6.0 21 -12° B75 1 CC□□0602 TRX08 D Steel with B12M-SCLC R/L0602-14 ● ● 14 12 11 150 7.0 25 -10° on 1 BFTX02506N 1.5 Anti-Vibration B12M-SCLC R/L0602-16 ● ● 16 12 11 150 9.0 25 -10° 1 Mechanism B16R-SCLC R/L09T3-20 ● ● 20 16 15 200 11.0 30 -8° B78 1 BFTX0407N 3.0 CC□□09T3 TRX15 B20S-SCLC R/L09T3-25 ● ● 25 20 18 250 13.0 30 -7° on 1 BFTX0409N 3.4 B25T-SCLC R/L1204-32 ● ● 32 25 23 300 17.0 38 -6° CC□□1204 B80 1 BFTX0511N 5.0 TRX20 R Right-handed (R) tool holders are compatible with left-handed (L) or neutral (N) inserts. Left-handed (L) tool holders are compatible with right-handed (R) or neutral (N) inserts. S T V W Very Small Diameter Turning Small Diameter Turning Applicable Inserts S-SCLC / A-SCLC / B-SCLC / C-SCLC / E-SCLC Type Name of Chipbreaker/ GU Legend ● Refer as well to the Insert Selection Guide (page A10 on). 1st Recommended Insert CBN/PCD Photo ● Some combinations need to be made to order or cannot be manufactured. Grade AC8025P Cutting Range P (Steel) M (Stainless Steel) K (Cast Iron) S (Exotic Alloy) N (Non-ferrous) H (Hardened Steel) Hard Brittle Material Process Finishing Medium Cutting Roughing Finishing Medium Cutting Roughing High-speed Finishing Finishing to Medium Cutting Medium to Roughing Finishing to Medium Cutting High-precision/Finishing Finishing to Medium Cutting Coated Uncoated — FB SU MU LB SU MU SUMIBORON MU No Chipbreaker SU SUMIDIA AG SUMIBORON SUMIBORON SUMIDIA General Cutting T1500Z AC8025P AC8025P AC6030M AC6030M AC6040M BN7000/BNC500 AC4015K AC4015K AC5015S DA1000 H1 BNC2020 BN2000 DA90 FC SI SC FC SI SC SUMIBORON SI SUMIDIA SUMIBORON SUMIBORON SUMIDIA Binderless High — — — Precision T1500A AC1030U AC1030U AC1030U AC1030U AC1030U BN7000/BNC500 AC5015S DA1000 BNC2010 BN1000 NPD10 Recommended Cutting Conditions A10 on A14 on A16 on A18 on A22 on A20 on M2 on BNC500 is for ductile cast iron. N m Recommended Tightening Torque (N·m) E13
