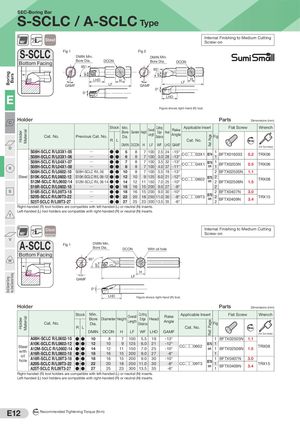

SEC-Boring Bar S-SCLC / A-SCLC Type Internal Finishing to Medium Cutting 95° Steel Screw-on S-SCLC Fig 1 Fig 2 DMIN Min. DMIN Min. Bore Dia. DCON Bore Dia. DCON Bottom Facing 95° 95° Boring WF WF Bars LHD H H LF GAMF LF GAMF 0° 0° E LHD Figure shows right-hand (R) tool. Holder Parts Dimensions (mm) C Stock Min. Cutting Applicable Insert Flat Screw Wrench Overall Rake Material Bore Diameter Height Edge Head Holder Length Angle Cat. No. Previous Cat. No. Dia. Distance Fig Ref. Page R L Cat. No. Nm DMIN DCON H LF WF LHD GAMF (For Torx Holes) D S08H-SCLC R/L03X1-05 Q ● ● 5 8 7 100 2.5 24 -15° 1 CC□□03X1 B74 BFTX016033 0.2 TRX06 S08H-SCLC R/L03X1-06 Q ● ● 6 8 7 100 3.0 28 -13° 1 S08H-SCLC R/L04X1-07 Q ● ● 7 8 7 100 3.5 32 -13° 1 CC□□04X1 B74 on 1 BFTX0203N 0.5 TRX06 R S08H-SCLC R/L04X1-08 Q ● ● 8 8 7 100 4.0 37 -11° S08H-SCLC R/L0602-10 S08H-SCLC R/L 06 ● ● 10 8 7 100 5.5 19 -13° 2 BFTX02505N 1.1 Steel S10K-SCLC R/L0602-12 S10K-SCLC R/L 06-12 ● ● 12 10 9 125 6.0 21 -12° 2 CC□□0602 B75 on 2 BFTX02506N TRX08 S12M-SCLC R/L0602-14 S12M-SCLC R/L 06-14 ● ● 14 12 11 150 7.0 25 -10° 1.5 S16R-SCLC R/L0602-18 Q ● ● 18 16 15 200 9.0 27 -8° 2 S S16R-SCLC R/L09T3-18 Q ● ● 18 16 15 200 9.0 30 -10° 2 BFTX0407N 3.0 S20S-SCLC R/L09T3-22 Q ● ● 22 20 18 250 11.0 30 -8° CC□□09T3 B78 on 2 BFTX0409N TRX15 3.4 S25T-SCLC R/L09T3-27 Q ● ● 27 25 23 300 13.5 35 -6° 2 Right-handed (R) tool holders are compatible with left-handed (L) or neutral (N) inserts. Left-handed (L) tool holders are compatible with right-handed (R) or neutral (N) inserts. T 95° Steel Internal Finishing to Medium Cutting Coolant Hole Screw-on V A-SCLC Fig 1 DMIN Min. Bore Dia. DCON With oil hole Bottom Facing 95° W WF H Very Small Diameter Turning LF Small Diameter Turning GAMF 0° LHD Figure shows right-hand (R) tool. Holder Parts Dimensions (mm) Stock Min. Cutting Applicable Insert Flat Screw Wrench Overall Rake Material Bore Diameter Height Edge Head Holder Length Angle Ref. Page Cat. No. Dia. Distance Fig R L Cat. No. Nm DMIN DCON H LF WF LHD GAMF (For Torx Holes) A08H-SCLC R/L0602-10 ● ● 10 8 7 100 5.5 19 -13° 1 BFTX02505N 1.1 A10K-SCLC R/L0602-12 ● ● 12 10 9 125 6.0 21 -12° B75 1 Steel A12M-SCLC R/L0602-14 ● ● CC□□0602 TRX08 14 12 11 150 7.0 25 -10° on 1 BFTX02506N 1.5 with oil A16R-SCLC R/L0602-18 ● ● 18 16 15 200 9.0 27 -8° 1 hole A16R-SCLC R/L09T3-18 ● ● 18 16 15 200 9.0 30 -10° B78 1 BFTX0407N 3.0 A20S-SCLC R/L09T3-22 ● ● 22 20 18 250 11.0 30 -8° CC□□09T3 on 1 TRX15 BFTX0409N 3.4 A25T-SCLC R/L09T3-27 ● ● 27 25 23 300 13.5 35 -6° 1 Right-handed (R) tool holders are compatible with left-handed (L) or neutral (N) inserts. Left-handed (L) tool holders are compatible with right-handed (R) or neutral (N) inserts. E12 N m Recommended Tightening Torque (N·m)
