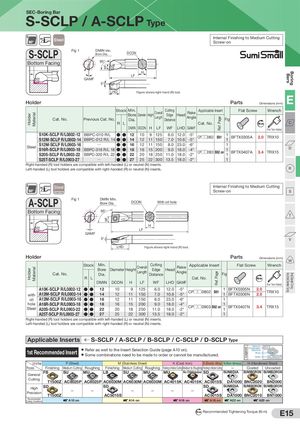

SEC-Boring Bar S-SCLP / A-SCLP Type Internal Finishing to Medium Cutting 95° Steel Screw-on S-SCLP Fig 1 DMIN Min. Bore Dia. DCON 95° Bottom Facing WF H Boring Bars LF GAMF 5° LHD Figure shows right-hand (R) tool. Holder Parts Dimensions (mm) E Stock Min. Cutting Applicable Insert Flat Screw Wrench Overall Rake Material Bore Diameter Height Edge Head Holder Length Angle Ref. Page Cat. No. Previous Cat. No. Dia. Distance Fig R L Cat. No. Nm C DMIN DCON H LF WF LHD GAMF (For Torx Holes) S10K-SCLP R/L0802-12 BBPC-010 R/L ● ● 12 10 9 125 6.0 12.0 -5° 1 CP□□0802 B81 BFTX0305A 2.0 TRX10 S12M-SCLP R/L0802-14 BBPC-012 R/L 14 ● ● 14 12 11 150 7.0 10.6 -5° 1 S12M-SCLP R/L0903-16 Q ● ● 16 12 11 150 8.0 23.0 -6° 1 Steel D S16R-SCLP R/L0903-18 BBPC-316 R/L 18 ● ● 18 16 15 200 9.0 18.0 -4° 1 CP□□0903 B82 on BFTX0407A 3.4 TRX15 S20S-SCLP R/L0903-22 BBPC-320 R/L 22 ● ● 22 20 18 250 11.0 18.0 -2° 1 S25T-SCLP R/L0903-27 Q ● ● 27 25 22 300 13.5 18.0 -2° 1 Right-handed (R) tool holders are compatible with left-handed (L) or neutral (N) inserts. Left-handed (L) tool holders are compatible with right-handed (R) or neutral (N) inserts. R 95° Steel Internal Finishing to Medium Cutting Coolant Hole Screw-on S A-SCLP Fig 1 DMIN Min. Bore Dia. DCON With oil hole Bottom Facing 95° T WF H LF GAMF 5° V LHD Figure shows right-hand (R) tool. Holder Parts Dimensions (mm) W Stock Min. Overall Cutting Rake Applicable Insert Flat Screw Wrench Material Bore Diameter Height Edge Head Holder Length Angle Ref. Page Cat. No. Dia. Distance Fig Very Small Diameter Turning Small Diameter Turning R L Cat. No. Nm DMIN DCON H LF WF LHD GAMF (For Torx Holes) A10K-SCLP R/L0802-12 ● ● 12 10 9 125 6.0 12.0 -5° 1 BFTX0305N 2.0 CP□□0802 B81 TRX10 with A12M-SCLP R/L0802-14 ● ● 14 12 11 150 7.0 10.6 -5° 1 BFTX0306N 2.0 oil A12M-SCLP R/L0903-16 ● ● 16 12 11 150 8.0 23.0 -6° 1 hole A16R-SCLP R/L0903-18 ● ● 18 16 15 200 9.0 18.0 -4° 1 Steel A20S-SCLP R/L0903-22 ● ● CP□□0903 B82 on BFTX0407N 3.4 TRX15 22 20 18 250 11.0 18.0 -2° 1 A25T-SCLP R/L0903-27 ● ● 27 25 22 300 13.5 18.0 -2° 1 Right-handed (R) tool holders are compatible with left-handed (L) or neutral (N) inserts. Left-handed (L) tool holders are compatible with right-handed (R) or neutral (N) inserts. Applicable Inserts S-SCLP / A-SCLP / B-SCLP / C-SCLP / D-SCLP Type Name of Chipbreaker/ GU Legend ● Refer as well to the Insert Selection Guide (page A10 on). 1st Recommended Insert CBN/PCD Photo ● Some combinations need to be made to order or cannot be manufactured. Grade AC8025P Cutting Range P (Steel) M (Stainless Steel) K (Cast Iron) S (Exotic Alloy) N (Non-ferrous) H (Hardened Steel) Process Finishing Medium Cutting Roughing Finishing Medium Cutting Roughing Finishing to Medium Cutting Medium to Roughing Finishing to Medium Cutting — Coated Uncoated FB SU MU LB SU MU MU No Chipbreaker SD SUMIDIA SUMIBORON SUMIBORON General Cutting T1500Z AC8025P AC8025P AC6030M AC6030M AC6030M AC4015K AC4015K AC5015S DA1000 BNC2020 BN2000 SD SD SUMIDIA SUMIBORON SUMIBORON High SD — — — — — — Precision T1500Z AC5015S AC5015S DA1000 BNC2010 BN1000 Recommended Cutting Conditions A10 on A14 on A16 on A18 on A22 on A20 on N m Recommended Tightening Torque (N·m) E15
