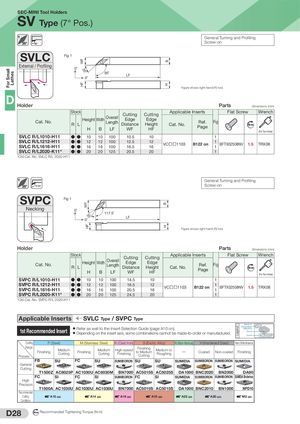

SEC-MINI Tool Holders SV Type (7° Pos.) General Turning and Profiling 95˚ Screw-on SVLC Fig 1 WF B External / Profiling 0˚ For Small 35˚ 95˚ Lathes LF 0˚ HF H Figure shows right-hand (R) tool. D Holder Parts Dimensions (mm) Stock Applicable Inserts Flat Screw Wrench Cutting Cutting Overall Edge Edge Cat. No. Height Width Fig Length Distance Ref. R L Height Cat. No. Nm Page H B LF WF HF (For Torx Holes) SVLC R/L1010-H11 ● ● 10 10 100 10.5 10 1 SVLC R/L1212-H11 ● ● 12 12 100 12.5 12 1 VC□□1103 B122 on BFTX02508NV 1.5 TRX08 SVLC R/L1616-H11 ● ● 16 16 100 16.5 16 1 SVLC R/L2020-K11* ● ● 20 20 125 20.5 20 1 *Old Cat. No. SVLC R/L 2020-H11 General Turning and Profiling 117.5˚ Screw-on SVPC Fig 1 WF B Necking 0˚ 117.5˚ 35 LF 0˚ HF ˚ H Figure shows right-hand (R) tool. Holder Parts Dimensions (mm) Stock Applicable Inserts Flat Screw Wrench Cutting Cutting Overall Edge Edge Cat. No. Height Width Fig Length Distance Ref. R L Height Cat. No. Nm Page H B LF WF HF (For Torx Holes) SVPC R/L1010-H11 ● ● 10 10 100 14.5 10 1 SVPC R/L1212-H11 ● ● 12 12 100 16.5 12 1 VC□□1103 B122 on BFTX02508NV 1.5 TRX08 SVPC R/L1616-H11 ● ● 16 16 100 20.5 16 1 SVPC R/L2020-K11* ● ● 20 20 125 24.5 20 1 *Old Cat. No. SVPC R/L 2020-H11 Applicable Inserts SVLC Type / SVPC Type Name of Chipbreaker/ GU Legend ● Refer as well to the Insert Selection Guide (page A10 on). 1st Recommended Insert CBN/PCD Photo ● Depending on the insert size, some combinations cannot be made-to-order or manufactured. Grade AC8025P Cutting P (Steel) M (Stainless Steel) K (Cast Iron) S (Exotic Alloy) N (Non-ferrous) H (Hardened Steel) Hard Brittle Material Range Medium Medium High-speed toFinishing Medium to Finishing Finishing Medium ─ Coated Non-coated Finishing Cutting Cutting Finishing Roughing Process Cutting FB SU FC SU SUMIBORON SU SU SUMIDIA SUMIBORON SUMIBORON SUMIDIA General Cutting T1500Z AC8025P AC1030U AC6030M BN7000 AC5015S AC5025S DA1000 BNC2020 BN2000 DA90 FC SI FC SI SUMIBORON FC SI SUMIDIA SUMIBORON SUMIBORON SUMIDIA Binderless High Precision T1500A AC1030U AC1030U AC1030U BN7000 AC5015S AC5015S DA1000 BNC2010 BN1000 NPD10 Recommended Cutting A10 on A14 on A16 on A18 on A22 on A20 on M2 on Conditions D28 N m Recommended Tightening Torque (N·m)
