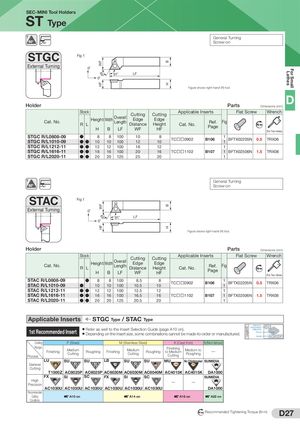

SEC-MINI Tool Holders ST Type General Turning 91˚ Screw-on STGC Fig 1 B WF External Turning 0˚ For Small Lathes 91˚ LF 60 0˚ HF ˚ H Figure shows right-hand (R) tool. Holder Parts Dimensions (mm) D Stock Applicable Inserts Flat Screw Wrench Cutting Cutting Overall Edge Edge Cat. No. Height Width Length Distance Ref. Fig R L Height Cat. No. Nm H B LF WF Page HF (For Torx Holes) STGC R/L0808-09 ● 8 8 100 10 8 1 TC□□0902 B106 BFTX02205N 0.5 TRX06 STGC R/L1010-09 ● ● 10 10 100 12 10 1 STGC R/L1212-11 ● ● 12 12 100 16 12 1 STGC R/L1616-11 ● ● 16 16 100 20 16 TC□□1102 B107 1 BFTX02506N 1.5 TRX08 STGC R/L2020-11 ● ● 20 20 125 25 20 1 General Turning 91˚ Screw-on STAC Fig 1 WF B External Turning 0˚ 91˚ LF 60 0˚ HF ˚ H Figure shows right-hand (R) tool. Holder Parts Dimensions (mm) Stock Applicable Inserts Flat Screw Wrench Cutting Cutting Overall Edge Edge Cat. No. Height Width Length Distance Ref. Fig R L Height Cat. No. Nm H B LF WF Page HF (For Torx Holes) STAC R/L0808-09 ● 8 8 100 8.5 8 1 TC□□0902 B106 BFTX02205N 0.5 TRX06 STAC R/L1010-09 ● 10 10 100 10.5 10 1 STAC R/L1212-11 ● ● 12 12 100 12.5 12 1 STAC R/L1616-11 ● ● 16 16 100 16.5 16 TC□□1102 B107 1 BFTX02506N 1.5 TRX08 STAC R/L2020-11 ● ● 20 20 125 20.5 20 1 Applicable Inserts STGC Type / STAC Type Name of Chipbreaker/ GU Legend ● Refer as well to the Insert Selection Guide (page A10 on). 1st Recommended Insert CBN/PCD Photo ● Depending on the insert size, some combinations cannot be made-to-order or manufactured. Grade AC8025P Cutting P (Steel) M (Stainless Steel) K (Cast Iron) N (Non-ferrous) Range Finishing Medium Medium Medium to Finishing Roughing Finishing Roughing to Medium ─ Cutting Cutting Roughing Process Cutting LU SU SU LB SU SU MU No Chipbreaker SUMIDIA General Cutting T1500Z AC8025P AC8025P AC6030M AC6030M AC6040M AC4015K AC4015K DA1000 FX SI SC FX SI SC SUMIDIA High ─ ─ Precision AC1030U AC1030U AC1030U AC1030U AC1030U AC1030U DA1000 Recommended Cutting A10 on A14 on A16 on A22 on Conditions N m Recommended Tightening Torque (N·m) D27
