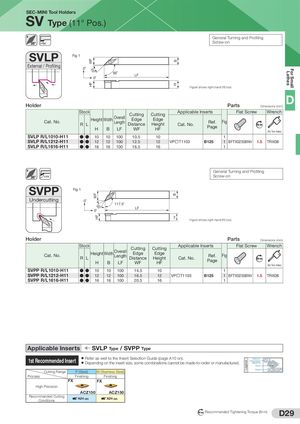

SEC-MINI Tool Holders SV Type (11° Pos.) General Turning and Profiling 95˚ Screw-on SVLP Fig 1 WF B External / Profiling 0˚ For Small 35˚ 95˚ Lathes LF 0˚ HF H Figure shows right-hand (R) tool. Holder Parts Dimensions (mm) D Stock Applicable Inserts Flat Screw Wrench Cutting Cutting Overall Edge Edge Cat. No. Height Width Fig Length Distance Ref. R L Height Cat. No. Nm Page H B LF WF HF (For Torx Holes) SVLP R/L1010-H11 ● ● 10 10 100 10.5 10 1 SVLP R/L1212-H11 ● ● 12 12 100 12.5 12 VP□T1103 B125 1 BFTX02508NV 1.5 TRX08 SVLP R/L1616-H11 ● ● 16 16 100 16.5 16 1 General Turning and Profiling 117.5˚ Screw-on SVPP Fig 1 WF B Undercutting 0˚ 117.5˚ 35 LF 0˚ HF ˚ H Figure shows right-hand (R) tool. Holder Parts Dimensions (mm) Stock Applicable Inserts Flat Screw Wrench Cutting Cutting Overall Edge Edge Cat. No. Height Width Fig Length Distance Ref. R L Height Cat. No. Nm Page H B LF WF HF (For Torx Holes) SVPP R/L1010-H11 ● ● 10 10 100 14.5 10 1 SVPP R/L1212-H11 ● ● 12 12 100 16.5 12 VP□T1103 B125 1 BFTX02508NV 1.5 TRX08 SVPP R/L1616-H11 ● ● 16 16 100 20.5 16 1 Applicable Inserts SVLP Type / SVPP Type ● Refer as well to the Insert Selection Guide (page A10 on). 1st Recommended Insert Name of Chipbreaker/ GU Legend ● Depending on the insert size, some combinations cannot be made-to-order or manufactured. CBN/PCD Photo Cutting Range P (Steel) M (Stainless Steel) Grade AC8025P Process Finishing Finishing FX FX High Precision ACZ150 ACZ150 Recommended Cutting A24 on A24 on Conditions N m Recommended Tightening Torque (N·m) D29
