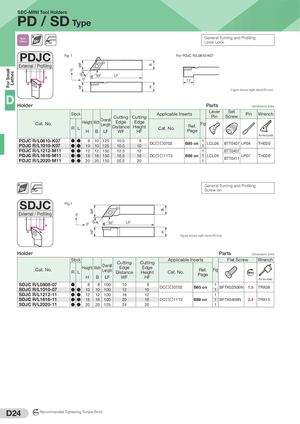

SEC-MINI Tool Holders PD / SD Type Back General Turning and Profiling Clamp 93° Lever Lock PDJC Fig 1 For PDJC R/L0810-K07 WF External / Profiling B 0˚ For Small Lathes 93˚ LF 55 HF ˚ 0˚ 17 H Figure shows right-hand (R) tool. D Holder Parts Dimensions (mm) Lever Set Stock Applicable Inserts Pin Wrench Cutting Cutting Pin Screw Overall Edge Edge Cat. No. Height Width Fig Length Distance Height Ref. R L Cat. No. H B LF WF HF Page (For Hex Socket) PDJC R/L0810-K07 ● ● 8 10 125 10.5 8 1 DC□□0702 B85 on LCL06 BTT0407 LP04 TH020 PDJC R/L1010-K07 ● ● 10 10 125 10.5 10 1 PDJC R/L1212-M11 ● ● 12 12 150 12.5 12 1 BTT0407 PDJC R/L1616-M11 ● ● 16 16 150 16.5 16 DC□□11T3 B88 on 1 LCL09 LP07 TH020 BTT0411 PDJC R/L2020-M11 ● ● 20 20 150 20.5 20 1 General Turning and Profiling 93° Screw-on SDJC Fig 1 WF B External / Profiling 0˚ 93˚ LF 55 0˚ ˚ HF H Figure shows right-hand (R) tool. Holder Parts Dimensions (mm) Stock Applicable Inserts Flat Screw Wrench Cutting Cutting Overall Edge Edge Cat. No. Height Width Ref. Fig R L Length Distance Height Cat. No. Nm Page H B LF WF HF (For Torx Holes) SDJC R/L0808-07 ● 8 8 100 10 8 1 DC□□0702 B85 on BFTX02506N 1.5 TRX08 SDJC R/L1010-07 ● ● 10 10 100 12 10 1 SDJC R/L1212-11 ● ● 12 12 100 16 12 1 SDJC R/L1616-11 ● ● 16 16 100 20 16 DC□□11T3 B88 on 1 BFTX0409N 3.4 TRX15 SDJC R/L2020-11 ● ● 20 20 125 24 20 1 D24 N m Recommended Tightening Torque (N·m)
