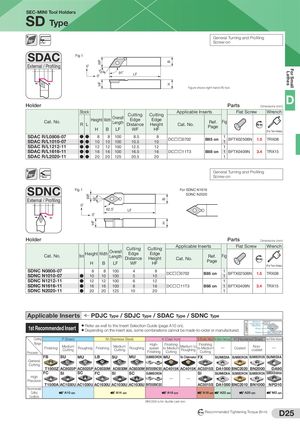

SEC-MINI Tool Holders SD Type General Turning and Profiling 91˚ Screw-on SDAC Fig 1 WF B External / Profiling 0˚ For Small 55 91˚ Lathes LF ˚ 0˚ HF H Figure shows right-hand (R) tool. Holder Parts Dimensions (mm) D Stock Applicable Inserts Flat Screw Wrench Cutting Cutting Overall Edge Edge Cat. No. Height Width Ref. Fig R L Length Distance Height Cat. No. Nm Page H B LF WF HF (For Torx Holes) SDAC R/L0808-07 ● ● 8 8 100 8.5 8 1 DC□□0702 B85 on BFTX02506N 1.5 TRX08 SDAC R/L1010-07 ● ● 10 10 100 10.5 10 1 SDAC R/L1212-11 ● ● 12 12 100 12.5 12 1 SDAC R/L1616-11 ● ● 16 16 100 16.5 16 DC□□11T3 B88 on 1 BFTX0409N 3.4 TRX15 SDAC R/L2020-11 ● ● 20 20 125 20.5 20 1 General Turning and Profiling 62.5˚ Screw-on SDNC Fig 1 For SDNC N1616 SDNC N2020 WF 55˚ External / Profiling B 0˚ 62.5˚ LF 0˚ HF H Holder Parts Dimensions (mm) Applicable Inserts Flat Screw Wrench Cutting Cutting Overall Edge Edge Cat. No. Stock Height Width Length Distance Ref. Fig Height Cat. No. Nm H B LF WF HF Page (For Torx Holes) SDNC N0808-07 8 8 100 4 8 1 DC□□0702 B85 on BFTX02506N 1.5 TRX08 SDNC N1010-07 ● 10 10 100 5 10 1 SDNC N1212-11 ● 12 12 100 6 12 1 SDNC N1616-11 ● 16 16 100 8 16 DC□□11T3 B88 on 1 BFTX0409N 3.4 TRX15 SDNC N2020-11 ● 20 20 125 10 20 1 Applicable Inserts PDJC Type / SDJC Type / SDAC Type / SDNC Type Name of Chipbreaker/ GU Legend ● Refer as well to the Insert Selection Guide (page A10 on). 1st Recommended Insert CBN/PCD Photo ● Depending on the insert size, some combinations cannot be made-to-order or manufactured. Grade AC8025P Cutting P (Steel) M (Stainless Steel) K (Cast Iron) S (Exotic Alloy) N (Non-ferrous) H (Hardened Steel) Hard Brittle Material Range High- Finishing Medium Medium to toFinishing Roughing speed to Medium Medium Non- Finishing Roughing Finishing Medium ─ Coated ─ Cutting Cutting Roughing coated Process Finishing Cutting Cutting FB SU MU LB SU MU SUMIBORON MU No Chipbreaker FX SUMIDIA SUMIBORON SUMIBORON SUMIDIA General Cutting T1500Z AC8025P AC8025P AC6030M AC6030M AC6030M BN7000/BNC500 AC4015K AC4015K AC5015S DA1000 BNC2020 BN2000 DA90 FC SI SC FC SI SC SUMIBORON SI SUMIDIA SUMIBORON SUMIBORON SUMIDIA Binderless High ─ ─ Precision T1500A AC1030U AC1030U AC1030U AC1030U AC1030U BN7000/BNC500 AC5015S DA1000 BNC2010 BN1000 NPD10 Recommended Cutting A10 on A14 on A16 on A18 on A22 on A20 on M2 on Conditions BNC500 is for ductile cast iron. N m Recommended Tightening Torque (N·m) D25
