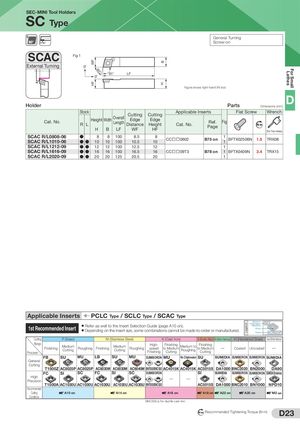

Общий каталог Sumitomo 2019 - 2020 - страница 237

SEC-MINI Tool Holders SC Type General Turning 91˚ Screw-on SCAC Fig 1 WF B External Turning 0˚ For Small 80 Lathes 91˚ LF ˚ 0˚ HF H Figure shows right-hand (R) tool. Holder Parts Dimensions (mm) D Stock Applicable Inserts Flat Screw Wrench Cutting Cutting Overall Edge Edge Cat. No. Height Width Ref. Fig R L Length Distance Height Cat. No. Nm Page H B LF WF HF (For Torx Holes) SCAC R/L0808-06 ● 8 8 100 8.5 8 1 CC□□0602 B75 on BFTX02506N 1.5 TRX08 SCAC R/L1010-06 ● ● 10 10 100 10.5 10 1 SCAC R/L1212-09 ● ● 12 12 100 12.5 12 1 SCAC R/L1616-09 ● ● 16 16 100 16.5 16 CC□□09T3 B78 on 1 BFTX0409N 3.4 TRX15 SCAC R/L2020-09 ● ● 20 20 125 20.5 20 1 Applicable Inserts PCLC Type / SCLC Type / SCAC Type Name of Chipbreaker/ GU Legend ● Refer as well to the Insert Selection Guide (page A10 on). CBN/PCD 1st Recommended Insert ● Depending on the insert size, some combinations cannot be made-to-order or manufactured. Photo Grade AC8025P Cutting P (Steel) M (Stainless Steel) K (Cast Iron) S (Exotic Alloy) N (Non-ferrous) H (Hardened Steel) Hard Brittle Material Range High- Finishing Medium Medium to toFinishing Finishing Roughing Finishing Roughing speed to Medium Medium Medium ─ Coated Uncoated ─ Cutting Cutting Roughing Process Finishing Cutting Cutting FB SU MU LB SU MU SUMIBORON MU No Chipbreaker SU SUMIDIA SUMIBORON SUMIBORON SUMIDIA General Cutting T1500Z AC8025P AC8025P AC6030M AC6030M AC6040M BN7000/BNC500 AC4015K AC4015K AC5015S DA1000 BNC2020 BN2000 DA90 FC SI SC FC SI SC SUMIBORON SI SUMIDIA SUMIBORON SUMIBORON SUMIDIA Binderless High ─ ─ Precision T1500A AC1030U AC1030U AC1030U AC1030U AC1030U BN7000/BNC500 AC5015S DA1000 BNC2010 BN1000 NPD10 Recommended Cutting A10 on A14 on A16 on A18 on A22 on A20 on M2 on Conditions BNC500 is for ductile cast iron. N m Recommended Tightening Torque (N·m) D23
