Общий каталог Sumitomo 2019 - 2020 - страница 236

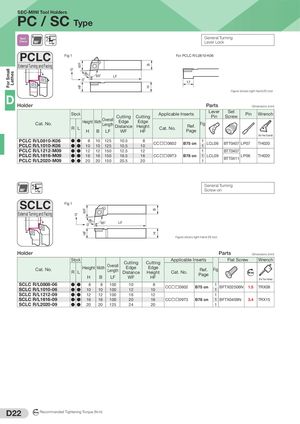

SEC-MINI Tool Holders PC / SC Type Back 95˚ General Turning Clamp 95˚ Lever Lock PCLC Fig 1 For PCLC R/L0810-K06 WF External Turning and Facing B 0˚ For Small Lathes 80 95˚ LF ˚ 0˚ 17 HF H Figure shows right-hand (R) tool. D Holder Parts Dimensions (mm) Lever Set Stock Applicable Inserts Pin Wrench Cutting Cutting Pin Screw Overall Edge Edge Cat. No. Height Width Fig Length Distance Height Ref. R L Cat. No. H B LF WF HF Page (For Hex Socket) PCLC R/L0810-K06 ● ● 8 10 125 10.5 8 1 CC□□0602 B75 on LCL06 BTT0407 LP07 TH020 PCLC R/L1010-K06 ● ● 10 10 125 10.5 10 1 PCLC R/L1212-M09 ● ● 12 12 150 12.5 12 1 BTT0407 PCLC R/L1616-M09 ● ● 16 16 150 16.5 16 CC□□09T3 B78 on 1 LCL09 LP06 TH020 BTT0411 PCLC R/L2020-M09 ● ● 20 20 150 20.5 20 1 95˚ General Turning 95˚ Screw-on SCLC Fig 1 WF B External Turning and Facing 0˚ 80 ˚ 95˚ LF 0˚ HF H Figure shows right-hand (R) tool. Holder Parts Dimensions (mm) Stock Applicable Inserts Flat Screw Wrench Cutting Cutting Overall Edge Edge Cat. No. Height Width Ref. Fig R L Length Distance Height Cat. No. Nm Page H B LF WF HF (For Torx Holes) SCLC R/L0808-06 ● ● 8 8 100 10 8 1 CC□□0602 B75 on BFTX02506N 1.5 TRX08 SCLC R/L1010-06 ● ● 10 10 100 12 10 1 SCLC R/L1212-09 ● ● 12 12 100 16 12 1 SCLC R/L1616-09 ● ● 16 16 100 20 16 CC□□09T3 B78 on 1 BFTX0409N 3.4 TRX15 SCLC R/L2020-09 ● ● 20 20 125 24 20 1 D22 N m Recommended Tightening Torque (N·m)
