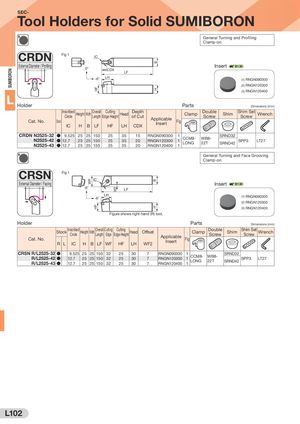

SUMIBORON WF HFHF WF2 BHBH SEC- Tool Holders for Solid SUMIBORON General Turning and Profiling Clamp-on CRDN Fig 1 IC External Diameter / Pro ling 0° CDX Insert B130 LF -6° LH (1) RNGN090300 (2) RNGN120300 (3) RNGN120400 L Holder Parts  Dimensions (mm) Cat. No. Inscribed Circle Height Width Overall Length Cutting Edge Height Head Depthof CutStockICHBLFHFLHCDXApplicableInsertClampFigDoubleScrewShimShim SetScrewWrench CRDN N2525-32 ● 9.525 25 25 150 25CRDN N2525-42● 12.7252515025CRDN N2525-43● 12.7252515025353535152020RNGN090300RNGN12030011CCM8-LONGWB8-22TRNGN1204001SRND32SRND42SPP3LT27 General Turning and Face Grooving Clamp-on CRSN Fig 1 IC External Diameter / Facing Insert B130 -6° LF LH-6° (1) RNGN090300 (2) RNGN120300 (3) RNGN120400 Figure shows right-hand (R) tool. Holder Parts  Dimensions (mm) Cat. No. Stock Inscribed Circle Height Width Overall Length Cutting Edge Cutting Edge Height Head OffsetRLICHBLFWFHFLHWF2ApplicableInsertFigClampDoubleScrewShimShim Set Screw Wrench CRSN R/L2525-32 ● 9.525 25 25 150 32 25 30CRSN R/L2525-42 ●12.72525150322530CRSN R/L2525-43 ●12.72525150322530777RNGN090300RNGN120300RNGN120400111CCM8-LONGWB8-22TSRND32SRND42SPP3LT27 L102
