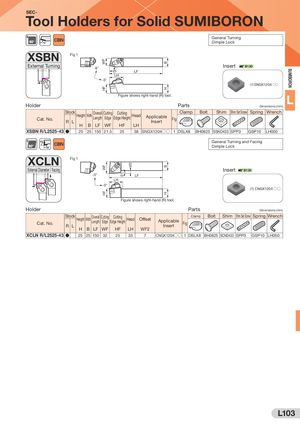

WFHFWFHF 5° WF2 BHBH SUMIBORON SEC- Tool Holders for Solid SUMIBORON General Turning 75˚ Dimple Lock XSBN Fig 1 External Turning -6° 75° LF Insert B130 LH -5° (1) SNGX1204 ○○ Figure shows right-hand (R) tool. L Holder Parts  Dimensions (mm) Cat. No. Stock Height Width Overall Length Cutting Edge Cutting Edge Height HeadRL ApplicableInsert ClampFig Bolt Shim Shim Set Screw Spring Wrench H B LF WF HF LH XSBN R/L2525-43 ● 25 25 150 21.5 25 38 SNGX1204○○ 1 DSLX8 BH0825 SSND433 SPP3 GSP10 LH050 95˚ General Turning and Facing 95˚ Dimple Lock XCLN Fig 1 External Diameter / Facing Insert B130 -5° LF LH -5° (1) CNGX1204 ○○ Figure shows right-hand (R) tool. Holder Parts  Dimensions (mm) Cat. No. Stock Height Width Overall Length Cutting Edge Cutting Edge Height Head OffsetRL ClampApplicableInsertFigBoltShimShim Set Screw Spring Wrench H B LF WF HF LH WF2 XCLN R/L2525-43 ● 25 25 150 32 25 33 7 CNGX1204○○ 1 DSLX8 BH0825 SCND433 SPP3 GSP10 LH050 L103
