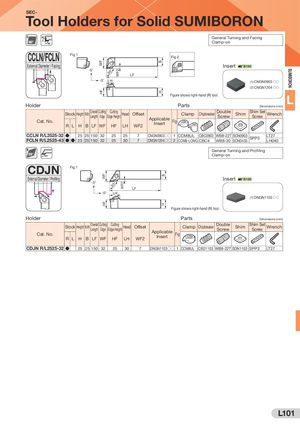

WFHF WFHF WF2 WF2 BH BH SUMIBORON SEC- Tool Holders for Solid SUMIBORON 95˚ General Turning and Facing 95˚ Clamp-on CCLN/FCLN Fig 1 Fig 2 External Diameter / Facing Insert B130 -5° 95° LF -5° LH (1) CNGN0903 ○○ (2) CNGN1204 ○○ Figure shows right-hand (R) tool. L Holder Parts  Dimensions (mm) Cat. No. Stock Height Width Overall Length Cutting Edge Cutting Edge Height Head OffsetRLHBLFWFHFLHWF2ApplicableInsertFigClampChipbreaker Double ScrewShimShim Set Screw Wrench CCLN R/L2525-32 ● 25 25 150 32 25 25FCLN R/L2525-43 ● ●2525 150322530 77 CNGN0903○○CNGN1204○○12CCM8ULCBC0903CCM8-LONG CBC4WB8-22T SCN0903WB8-30SCND433SPP3LT27LH040 General Turning and Profiling 93° Clamp-on CDJN Fig 1 External Diameter / Pro ling Insert B130 -5° 93° LF -5° LH (1) DNGN1103 ○○ Figure shows right-hand (R) tool. Holder Parts  Dimensions (mm) Cat. No. Stock Height Width Overall Length Cutting Edge Cutting Edge Height Head OffsetRLHBLFWFHFLHWF2ApplicableInsertFigClampChipbreakerDoubleScrewShimShim Set Screw Wrench CDJN R/L2525-32 ● 25 25 150 32 25 30 7 DNGN1103○○ 1 CCM8UL CBD1103 WB8-22T SDN1103 SPP3 LT27 L101
