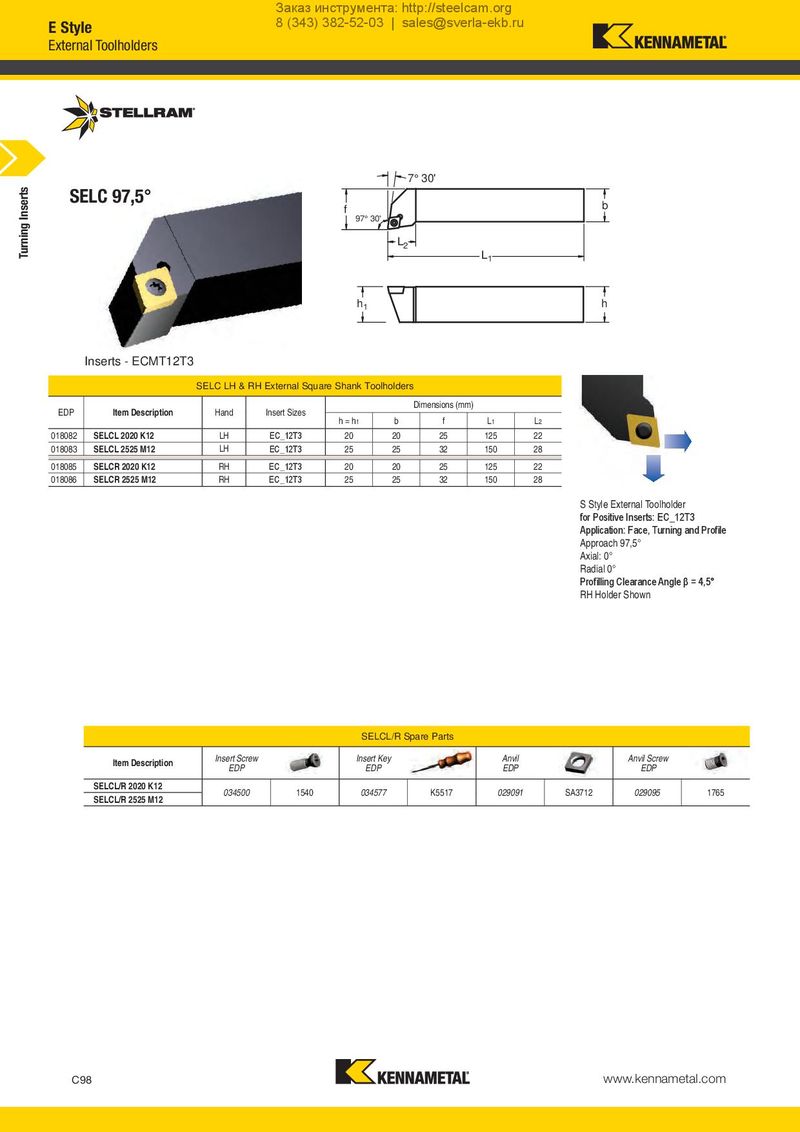

Заказ инструмента: http://steelcam.org E Style 8 (343) 382-52-03 | sales@sverla-ekb.ru External Toolholders 7° 30' Turning Inserts SELC 97,5° f b 97° 30' L2 L1 h1 h Inserts - ECMT12T3 SELC LH & RH External Square Shank Toolholders EDP Item Description Hand Insert Sizes Dimensions (mm) h = h1 b f L1 L2 018082 SELCL 2020 K12 LH EC_12T3 20 20 25 125 22 018083 SELCL 2525 M12 LH EC_12T3 25 25 32 150 28 018085 SELCR 2020 K12 RH EC_12T3 20 20 25 125 22 018086 SELCR 2525 M12 RH EC_12T3 25 25 32 150 28 S Style External Toolholder for Positive Inserts: EC_12T3 Application: Face, Turning and Profile Approach 97,5° Axial: 0° Radial 0° Profilling Clearance Angle β = 4,5° RH Holder Shown SELCL/R Spare Parts Item Description Insert Screw Insert Key Anvil Anvil Screw EDP EDP EDP EDP SELCL/R 2020 K12 034500 1540 034577 K5517 029091 SA3712 029095 1765 SELCL/R 2525 M12 C98 www.kennametal.com
