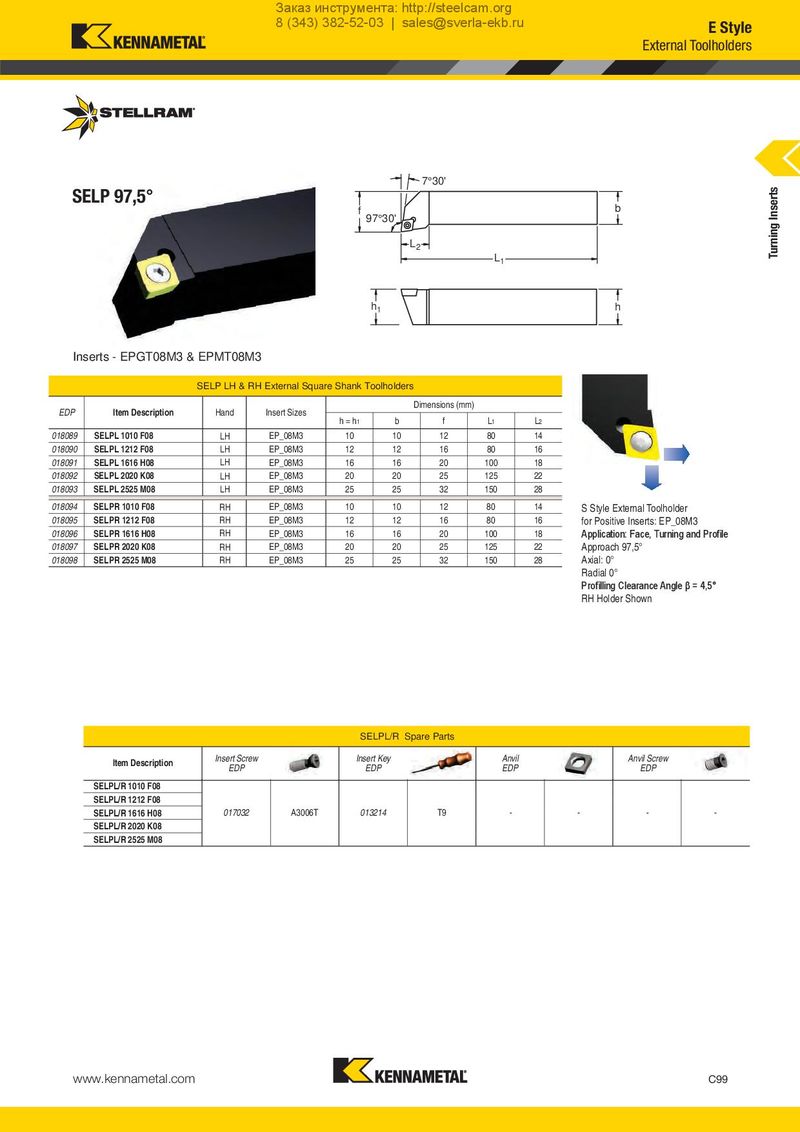

Заказ инструмента: http://steelcam.org 8 (343) 382-52-03 | sales@sverla-ekb.ru E Style External Toolholders 7°30' SELP 97,5° b Turning Inserts f 97°30' L2 L1 h1 h Inserts - EPGT08M3 & EPMT08M3 SELP LH & RH External Square Shank Toolholders EDP Item Description Hand Insert Sizes Dimensions (mm) h = h1 b f L1 L2 018089 SELPL 1010 F08 LH EP_08M3 10 10 12 80 14 018090 SELPL 1212 F08 LH EP_08M3 12 12 16 80 16 018091 SELPL 1616 H08 LH EP_08M3 16 16 20 100 18 018092 SELPL 2020 K08 LH EP_08M3 20 20 25 125 22 018093 SELPL 2525 M08 LH EP_08M3 25 25 32 150 28 018094 SELPR 1010 F08 RH EP_08M3 10 10 12 80 14 S Style External Toolholder 018095 SELPR 1212 F08 RH EP_08M3 12 12 16 80 16 for Positive Inserts: EP_08M3 018096 SELPR 1616 H08 RH EP_08M3 16 16 20 100 18 Application: Face, Turning and Profile 018097 SELPR 2020 K08 RH EP_08M3 20 20 25 125 22 Approach 97,5° 018098 SELPR 2525 M08 RH EP_08M3 25 25 32 150 28 Axial: 0° Radial 0° Profilling Clearance Angle β = 4,5° RH Holder Shown SELPL/R Spare Parts Item Description Insert Screw Insert Key Anvil Anvil Screw EDP EDP EDP EDP SELPL/R 1010 F08 SELPL/R 1212 F08 SELPL/R 1616 H08 017032 A3006T 013214 T9 - - - - SELPL/R 2020 K08 SELPL/R 2525 M08 www.kennametal.com C99
