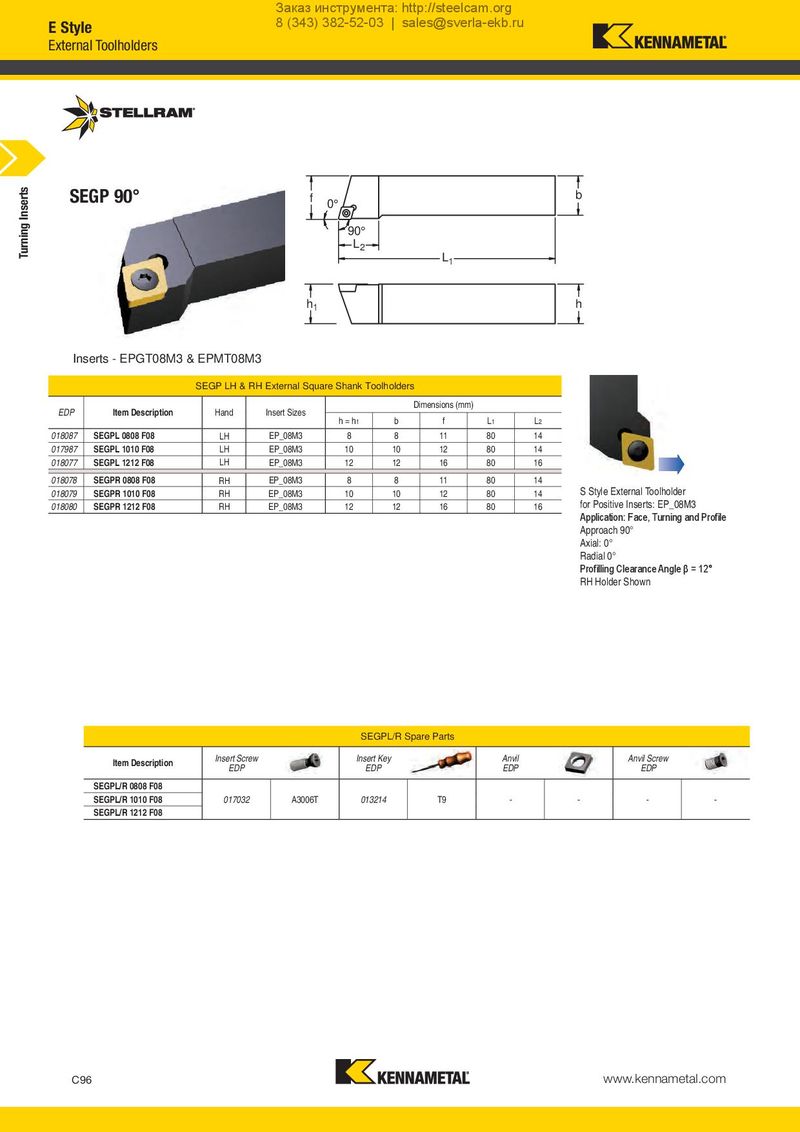

Заказ инструмента: http://steelcam.org E Style 8 (343) 382-52-03 | sales@sverla-ekb.ru External Toolholders SEGP 90° Turning Inserts f b 0° 90° L2 L1 h1 h Inserts - EPGT08M3 & EPMT08M3 SEGP LH & RH External Square Shank Toolholders Dimensions (mm) EDP Item Description Hand Insert Sizes h = h1 b f L1 L2 018087 SEGPL 0808 F08 LH EP_08M3 8 8 11 80 14 017987 SEGPL 1010 F08 LH EP_08M3 10 10 12 80 14 018077 SEGPL 1212 F08 LH EP_08M3 12 12 16 80 16 018078 SEGPR 0808 F08 RH EP_08M3 8 8 11 80 14 018079 SEGPR 1010 F08 RH EP_08M3 10 10 12 80 14 S Style External Toolholder 018080 SEGPR 1212 F08 RH EP_08M3 12 12 16 80 16 for Positive Inserts: EP_08M3 Application: Face, Turning and Profile Approach 90° Axial: 0° Radial 0° Profilling Clearance Angle β = 12° RH Holder Shown SEGPL/R Spare Parts Insert Screw Insert Key Anvil Anvil Screw Item Description EDP EDP EDP EDP SEGPL/R 0808 F08 SEGPL/R 1010 F08 017032 A3006T 013214 T9 - - - - SEGPL/R 1212 F08 C96 www.kennametal.com
