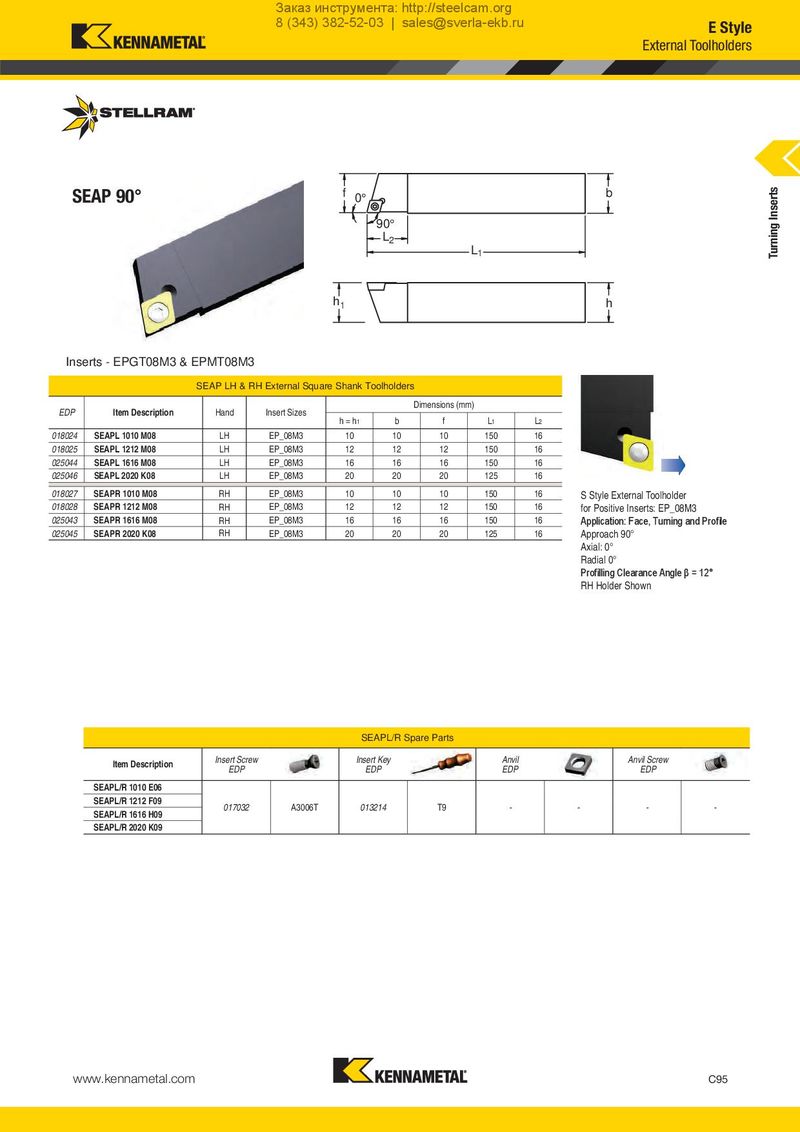

Заказ инструмента: http://steelcam.org 8 (343) 382-52-03 | sales@sverla-ekb.ru E Style External Toolholders SEAP 90° f 0° b Turning Inserts 90° L2 L1 h1 h Inserts - EPGT08M3 & EPMT08M3 SEAP LH & RH External Square Shank Toolholders EDP Item Description Hand Insert Sizes Dimensions (mm) h = h1 b f L1 L2 018024 SEAPL 1010 M08 LH EP_08M3 10 10 10 150 16 018025 SEAPL 1212 M08 LH EP_08M3 12 12 12 150 16 025044 SEAPL 1616 M08 LH EP_08M3 16 16 16 150 16 025046 SEAPL 2020 K08 LH EP_08M3 20 20 20 125 16 018027 SEAPR 1010 M08 RH EP_08M3 10 10 10 150 16 S Style External Toolholder 018028 SEAPR 1212 M08 RH EP_08M3 12 12 12 150 16 for Positive Inserts: EP_08M3 025043 SEAPR 1616 M08 RH EP_08M3 16 16 16 150 16 Application: Face, Turning and Profile 025045 SEAPR 2020 K08 RH EP_08M3 20 20 20 125 16 Approach 90° Axial: 0° Radial 0° Profilling Clearance Angle β = 12° RH Holder Shown SEAPL/R Spare Parts Item Description Insert Screw Insert Key Anvil Anvil Screw EDP EDP EDP EDP SEAPL/R 1010 E06 SEAPL/R 1212 F09 017032 A3006T 013214 T9 - - - - SEAPL/R 1616 H09 SEAPL/R 2020 K09 www.kennametal.com C95
