Каталог Stellram токарный инструмент - страница 87

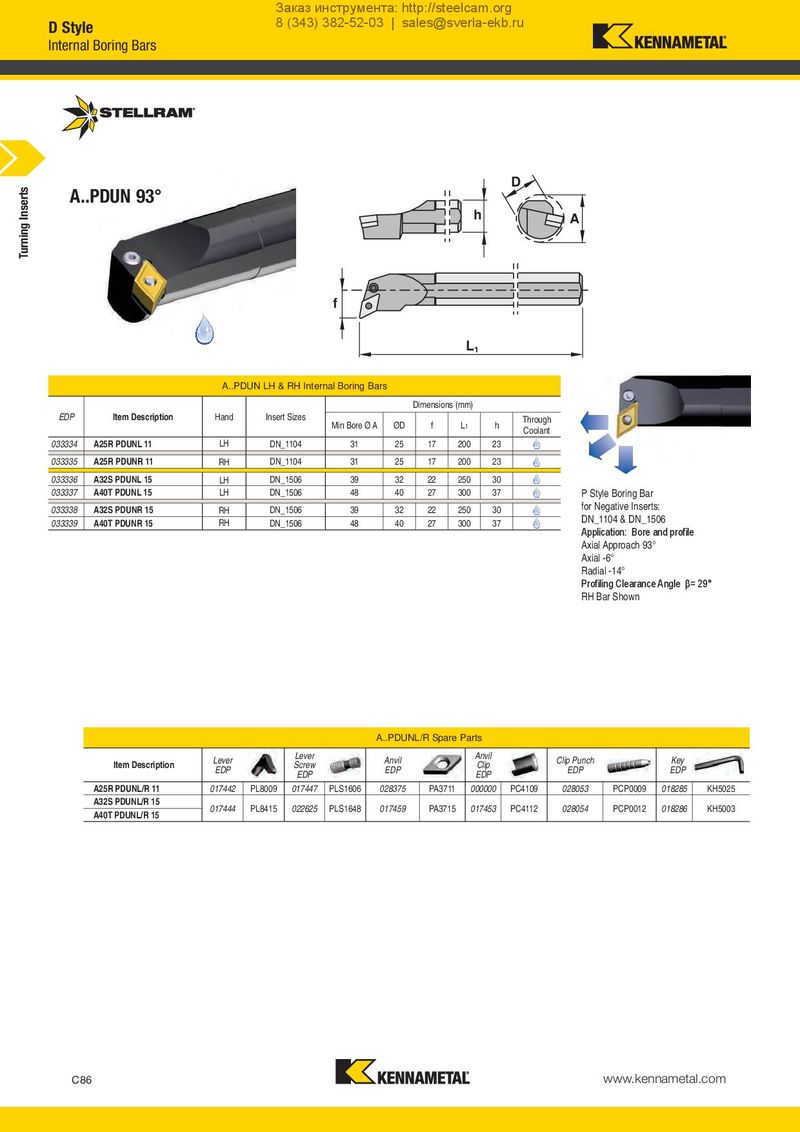

Заказ инструмента: http://steelcam.org D Style 8 (343) 382-52-03 | sales@sverla-ekb.ru Internal Boring Bars Turning Inserts D A..PDUN 93° h A f L1 A..PDUN LH & RH Internal Boring Bars Dimensions (mm) EDP Item Description Hand Insert Sizes Min Bore Ø A ØD f L1 h Through Coolant 033334 A25R PDUNL 11 LH DN_1104 31 25 17 200 23 033335 A25R PDUNR 11 RH DN_1104 31 25 17 200 23 033336 A32S PDUNL 15 LH DN_1506 39 32 22 250 30 033337 A40T PDUNL 15 LH DN_1506 48 40 27 300 37 P Style Boring Bar 033338 A32S PDUNR 15 RH DN_1506 39 32 22 250 30 for Negative Inserts: 033339 A40T PDUNR 15 RH DN_1506 48 40 27 300 37 DN_1104 & DN_1506 Application: Bore and profile Axial Approach 93° Axial -6° Radial -14° Profiling Clearance Angle β= 29° RH Bar Shown A..PDUNL/R Spare Parts Lever Lever Anvil Anvil Clip Punch Key Item Description EDP Screw EDP Clip EDP EDP EDP EDP A25R PDUNL/R 11 017442 PL8009 017447 PLS1606 028375 PA3711 000000 PC4109 028053 PCP0009 018285 KH5025 A32S PDUNL/R 15 017444 PL8415 022625 PLS1648 017459 PA3715 017453 PC4112 028054 PCP0012 018286 KH5003 A40T PDUNL/R 15 C86 www.kennametal.com
