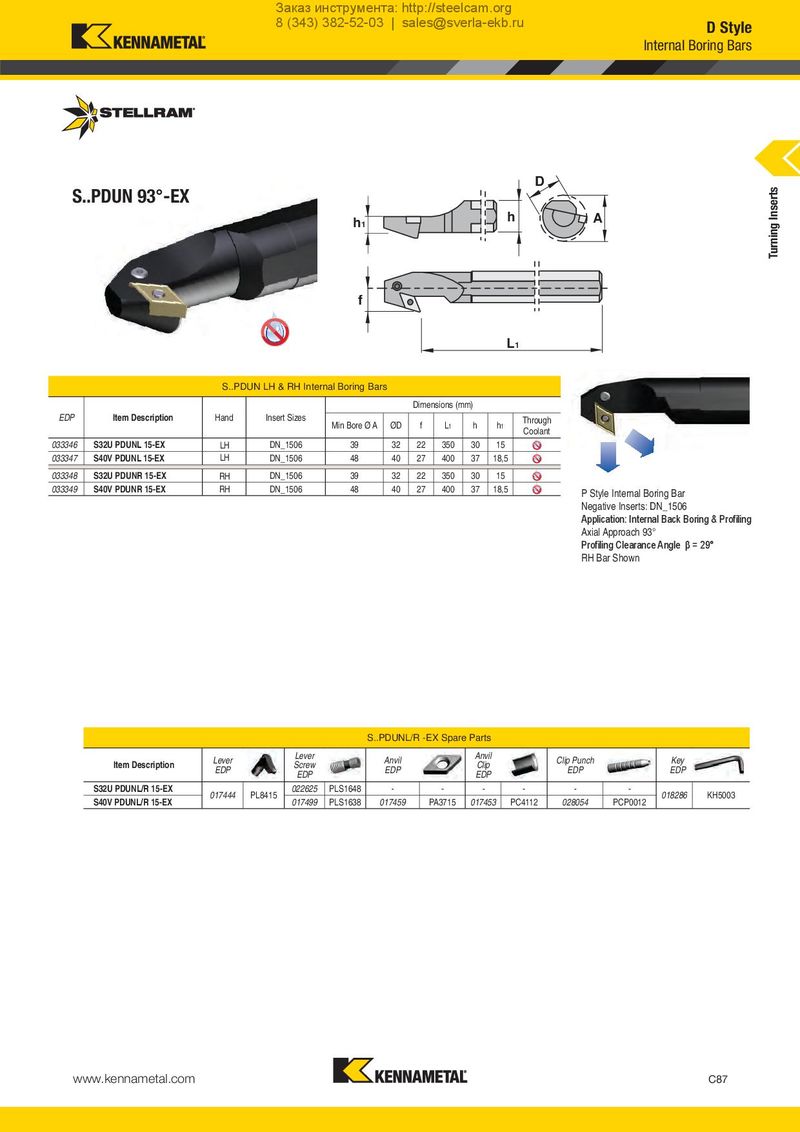

Каталог Stellram токарный инструмент - страница 88

Предыдущая страница Следующая страница

Навигация

S..PDUN 93°-EX D

h A

h

1

f

L

1

S..PDUN LH & RH Internal Boring Bars Dimensions (mm)

EDP Item Description Hand Insert Sizes

MinBoreØAØDfL1hh1
033346S32U PDUNL 15-EX LHDN_15063932223503015
033347S40V PDUNL 15-EXLHDN_15064840274003718,5
033348S32U PDUNR 15-EXRHDN_15063932223503015
033349S40V PDUNR 15-EXRHDN_15064840274003718,5

Through Coolant

P Style Internal Boring Bar

Negative Inserts: DN_1506

Application: Internal Back Boring & Profiling

Axial Approach 93°

Profiling Clearance Angle β = 29°

RH Bar Shown

S..PDUNL/R-EX SpareParts
Item DescriptionLever EDPLever Screw EDPAnvil EDPAnvil Clip EDPClip Punch EDPKey EDP
S32U PDUNL/R 15-EX017444PL8415022625PLS1648------018286KH5003
S40V PDUNL/R 15-EX017499PLS1638017459PA3715017453PC4112028054PCP0012
