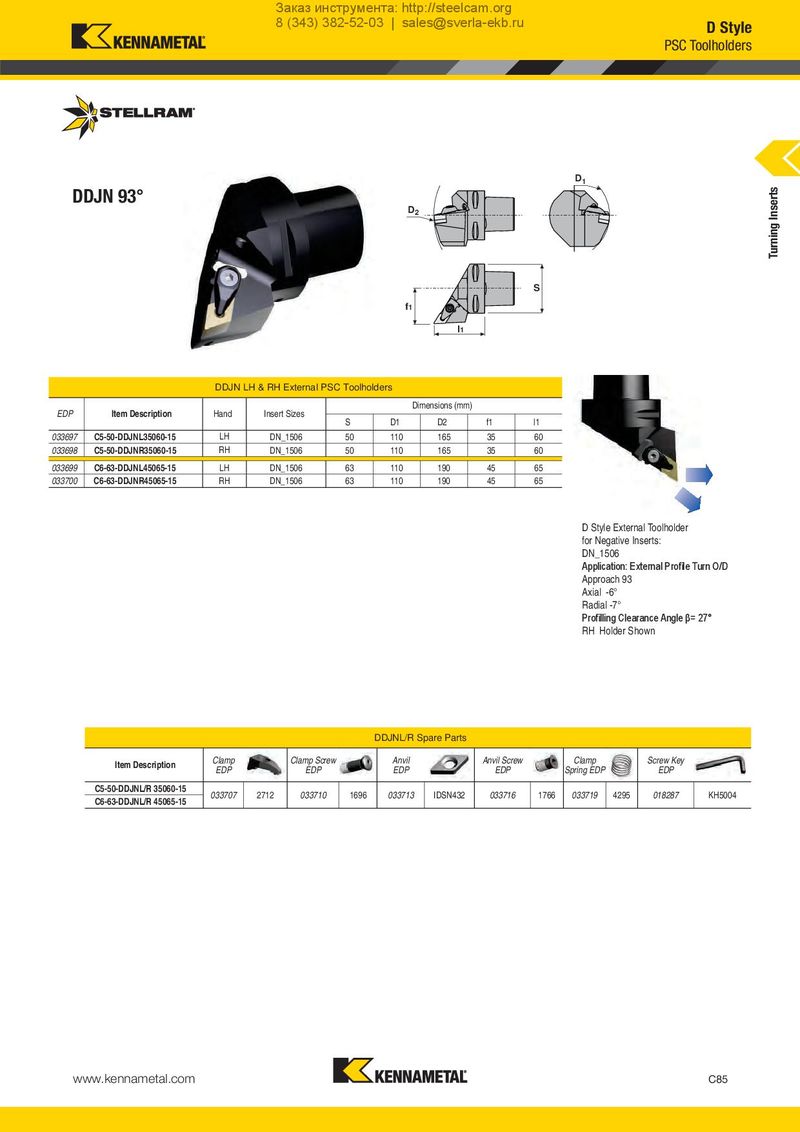

Заказ инструмента: http://steelcam.org 8 (343) 382-52-03 | sales@sverla-ekb.ru D Style PSC Toolholders D1 DDJN 93° Turning Inserts D2 S f1 l1 DDJN LH & RH External PSC Toolholders Dimensions (mm) EDP Item Description Hand Insert Sizes S D1 D2 f1 l1 033697 C5-50-DDJNL35060-15 LH DN_1506 50 110 165 35 60 033698 C5-50-DDJNR35060-15 RH DN_1506 50 110 165 35 60 033699 C6-63-DDJNL45065-15 LH DN_1506 63 110 190 45 65 033700 C6-63-DDJNR45065-15 RH DN_1506 63 110 190 45 65 D Style External Toolholder for Negative Inserts: DN_1506 Application: External Profile Turn O/D Approach 93 Axial -6° Radial -7° Profilling Clearance Angle β= 27° RH Holder Shown DDJNL/R Spare Parts Clamp Clamp Screw Anvil Anvil Screw Clamp Screw Key Item Description EDP EDP EDP EDP Spring EDP EDP C5-50-DDJNL/R 35060-15 033707 2712 033710 1696 033713 IDSN432 033716 1766 033719 4295 018287 KH5004 C6-63-DDJNL/R 45065-15 www.kennametal.com C85
