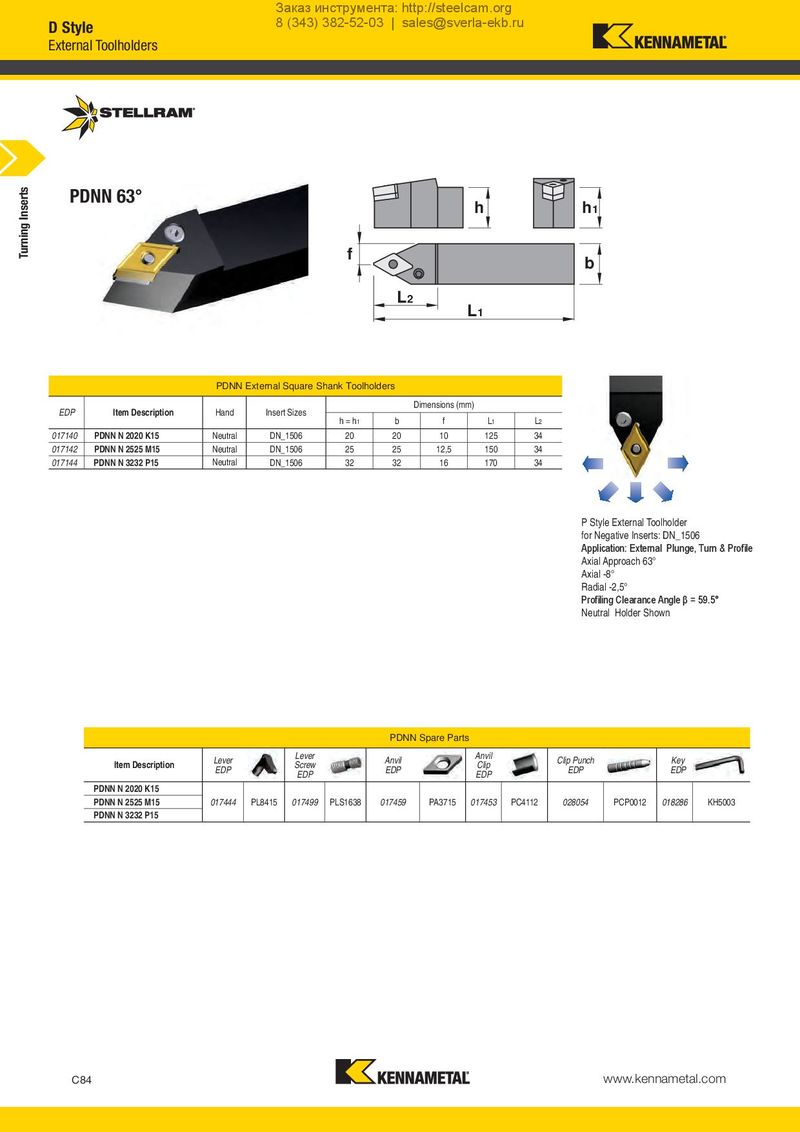

Заказ инструмента: http://steelcam.org D Style 8 (343) 382-52-03 | sales@sverla-ekb.ru External Toolholders Turning Inserts PDNN 63° h h1 f b L2 L1 PDNN External Square Shank Toolholders EDP Item Description Hand Insert Sizes Dimensions (mm) h = h1 b f L1 L2 017140 PDNN N 2020 K15 Neutral DN_1506 20 20 10 125 34 017142 PDNN N 2525 M15 Neutral DN_1506 25 25 12,5 150 34 017144 PDNN N 3232 P15 Neutral DN_1506 32 32 16 170 34 P Style External Toolholder for Negative Inserts: DN_1506 Application: External Plunge, Turn & Profile Axial Approach 63° Axial -8° Radial -2,5° Profiling Clearance Angle β = 59.5° Neutral Holder Shown PDNN Spare Parts Lever Lever Anvil Anvil Clip Punch Key Item Description EDP Screw EDP Clip EDP EDP EDP EDP PDNN N 2020 K15 PDNN N 2525 M15 017444 PL8415 017499 PLS1638 017459 PA3715 017453 PC4112 028054 PCP0012 018286 KH5003 PDNN N 3232 P15 C84 www.kennametal.com
