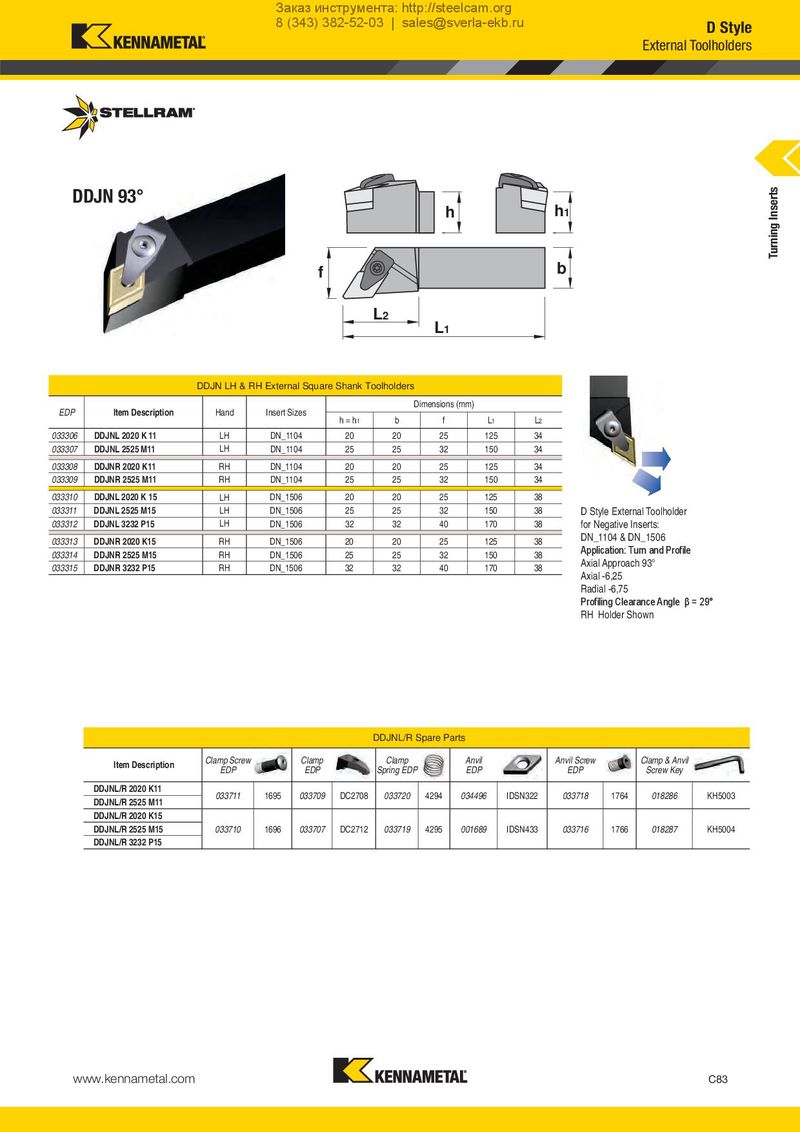

Заказ инструмента: http://steelcam.org 8 (343) 382-52-03 | sales@sverla-ekb.ru D Style External Toolholders DDJN 93° h h1 Turning Inserts f b L2 L1 DDJN LH & RH External Square Shank Toolholders EDP Item Description Hand Insert Sizes Dimensions (mm) h = h1 b f L1 L2 033306 DDJNL 2020 K 11 LH DN_1104 20 20 25 125 34 033307 DDJNL 2525 M11 LH DN_1104 25 25 32 150 34 033308 DDJNR 2020 K11 RH DN_1104 20 20 25 125 34 033309 DDJNR 2525 M11 RH DN_1104 25 25 32 150 34 033310 DDJNL 2020 K 15 LH DN_1506 20 20 25 125 38 033311 DDJNL 2525 M15 LH DN_1506 25 25 32 150 38 D Style External Toolholder 033312 DDJNL 3232 P15 LH DN_1506 32 32 40 170 38 for Negative Inserts: 033313 DDJNR 2020 K15 RH DN_1506 20 20 25 125 38 DN_1104 & DN_1506 033314 DDJNR 2525 M15 RH DN_1506 25 25 32 150 38 Application: Turn and Profile 033315 DDJNR 3232 P15 RH DN_1506 32 32 40 170 38 Axial Approach 93° Axial -6,25 Radial -6,75 Profiling Clearance Angle β = 29° RH Holder Shown DDJNL/R Spare Parts Item Description Clamp Screw Clamp Clamp Anvil Anvil Screw Clamp & Anvil EDP EDP Spring EDP EDP EDP Screw Key DDJNL/R 2020 K11 033711 1695 033709 DC2708 033720 4294 034496 IDSN322 033718 1764 018286 KH5003 DDJNL/R 2525 M11 DDJNL/R 2020 K15 DDJNL/R 2525 M15 033710 1696 033707 DC2712 033719 4295 001689 IDSN433 033716 1766 018287 KH5004 DDJNL/R 3232 P15 www.kennametal.com C83
