Каталог Stellram токарный инструмент - страница 155

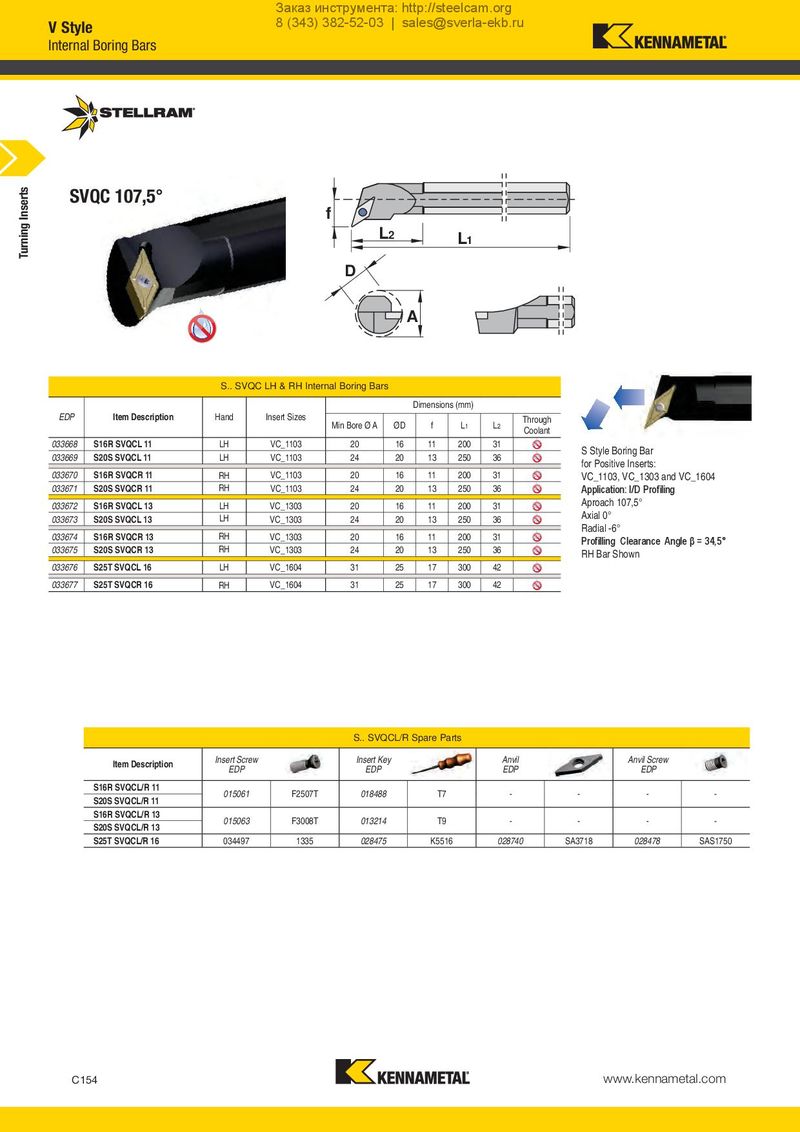

Заказ инструмента: http://steelcam.org V Style 8 (343) 382-52-03 | sales@sverla-ekb.ru Internal Boring Bars Turning Inserts SVQC 107,5° f L2 L1 D A S.. SVQC LH & RH Internal Boring Bars Dimensions (mm) EDP Item Description Hand Insert Sizes Min Bore Ø A ØD f L1 L2 Through Coolant 033668 S16R SVQCL 11 LH VC_1103 20 16 11 200 31 S Style Boring Bar 033669 S20S SVQCL 11 LH VC_1103 24 20 13 250 36 for Positive Inserts: 033670 S16R SVQCR 11 RH VC_1103 20 16 11 200 31 VC_1103, VC_1303 and VC_1604 033671 S20S SVQCR 11 RH VC_1103 24 20 13 250 36 Application: I/D Profiling 033672 S16R SVQCL 13 LH VC_1303 20 16 11 200 31 Aproach 107,5° 033673 S20S SVQCL 13 LH VC_1303 24 20 13 250 36 Axial 0° 033674 S16R SVQCR 13 RH VC_1303 20 16 11 200 31 Radial -6° 033675 S20S SVQCR 13 RH VC_1303 24 20 13 250 36 Profilling Clearance Angle β = 34,5° RH Bar Shown 033676 S25T SVQCL 16 LH VC_1604 31 25 17 300 42 033677 S25T SVQCR 16 RH VC_1604 31 25 17 300 42 S.. SVQCL/R Spare Parts Item Description Insert Screw Insert Key Anvil Anvil Screw EDP EDP EDP EDP S16R SVQCL/R 11 015061 F2507T 018488 T7 - - - - S20S SVQCL/R 11 S16R SVQCL/R 13 015063 F3008T 013214 T9 - - - - S20S SVQCL/R 13 S25T SVQCL/R 16 034497 1335 028475 K5516 028740 SA3718 028478 SAS1750 C154 www.kennametal.com
