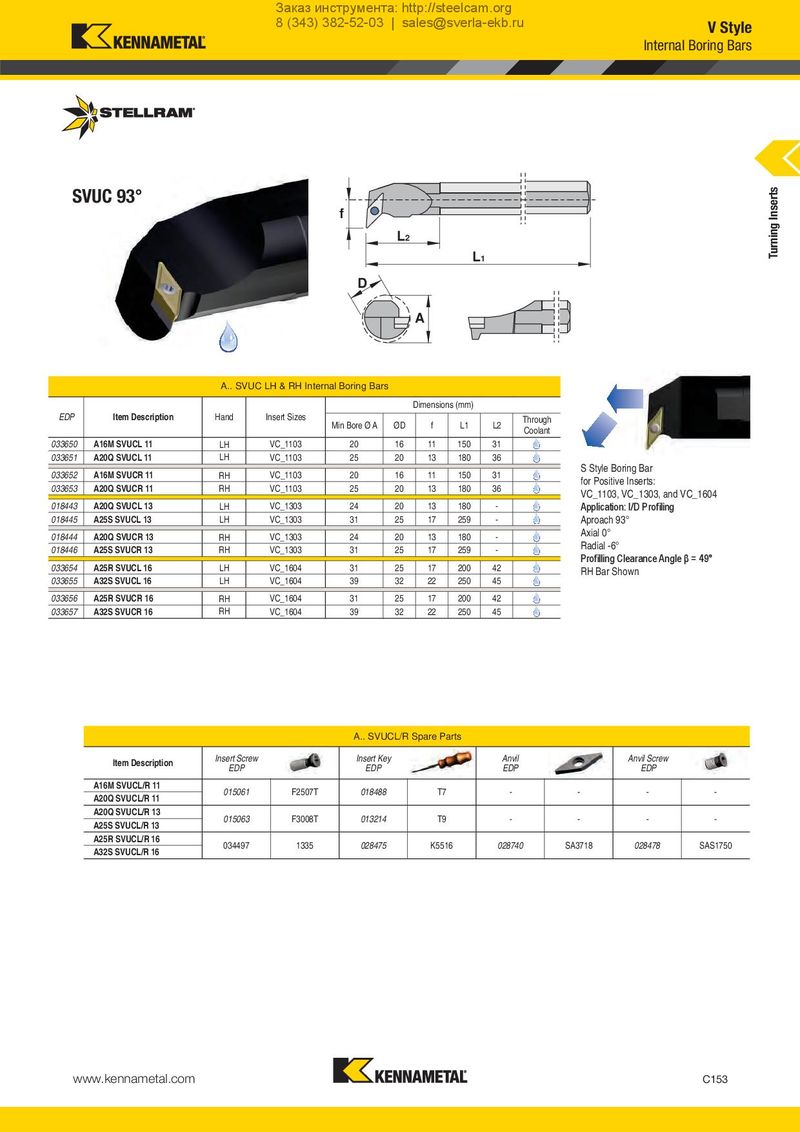

Заказ инструмента: http://steelcam.org 8 (343) 382-52-03 | sales@sverla-ekb.ru V Style Internal Boring Bars SVUC 93° Turning Inserts f L2 L1 D A A.. SVUC LH & RH Internal Boring Bars Dimensions (mm) EDP Item Description Hand Insert Sizes Min Bore Ø A ØD f L1 L2 Through Coolant 033650 A16M SVUCL 11 LH VC_1103 20 16 11 150 31 033651 A20Q SVUCL 11 LH VC_1103 25 20 13 180 36 033652 A16M SVUCR 11 RH VC_1103 20 16 11 150 31 S Style Boring Bar 033653 A20Q SVUCR 11 RH VC_1103 25 20 13 180 36 for Positive Inserts: VC_1103, VC_1303, and VC_1604 018443 A20Q SVUCL 13 LH VC_1303 24 20 13 180 - Application: I/D Profiling 018445 A25S SVUCL 13 LH VC_1303 31 25 17 259 - Aproach 93° 018444 A20Q SVUCR 13 RH VC_1303 24 20 13 180 - Axial 0° 018446 A25S SVUCR 13 RH VC_1303 31 25 17 259 - Radial -6° 033654 A25R SVUCL 16 LH VC_1604 31 25 17 200 42 Profilling Clearance Angle β = 49° 033655 A32S SVUCL 16 LH VC_1604 39 32 22 250 45 RH Bar Shown 033656 A25R SVUCR 16 RH VC_1604 31 25 17 200 42 033657 A32S SVUCR 16 RH VC_1604 39 32 22 250 45 A.. SVUCL/R Spare Parts Item Description Insert Screw Insert Key Anvil Anvil Screw EDP EDP EDP EDP A16M SVUCL/R 11 015061 F2507T 018488 T7 - - - - A20Q SVUCL/R 11 A20Q SVUCL/R 13 015063 F3008T 013214 T9 - - - - A25S SVUCL/R 13 A25R SVUCL/R 16 034497 1335 028475 K5516 028740 SA3718 028478 SAS1750 A32S SVUCL/R 16 www.kennametal.com C153
