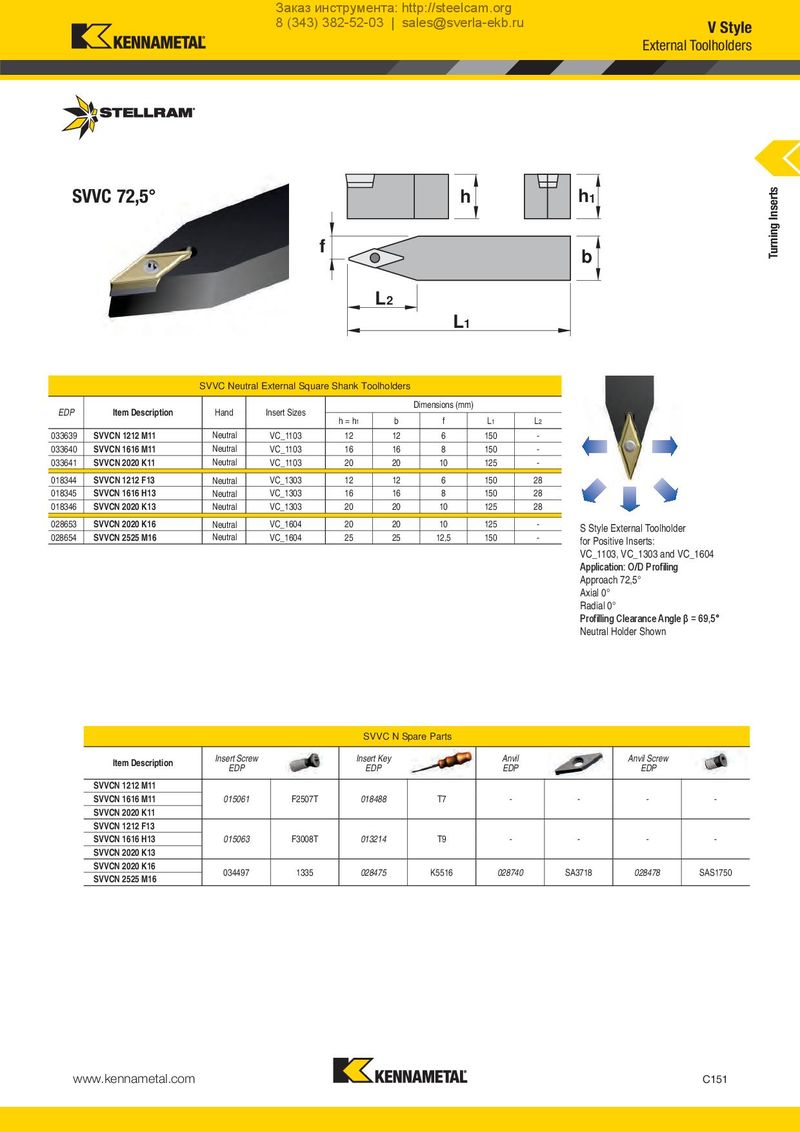

Заказ инструмента: http://steelcam.org 8 (343) 382-52-03 | sales@sverla-ekb.ru V Style External Toolholders SVVC 72,5° h h1 Turning Inserts f b L2 L1 SVVC Neutral External Square Shank Toolholders EDP Item Description Hand Insert Sizes Dimensions (mm) h = h1 b f L1 L2 033639 SVVCN 1212 M11 Neutral VC_1103 12 12 6 150 - 033640 SVVCN 1616 M11 Neutral VC_1103 16 16 8 150 - 033641 SVVCN 2020 K11 Neutral VC_1103 20 20 10 125 - 018344 SVVCN 1212 F13 Neutral VC_1303 12 12 6 150 28 018345 SVVCN 1616 H13 Neutral VC_1303 16 16 8 150 28 018346 SVVCN 2020 K13 Neutral VC_1303 20 20 10 125 28 028653 SVVCN 2020 K16 Neutral VC_1604 20 20 10 125 - S Style External Toolholder 028654 SVVCN 2525 M16 Neutral VC_1604 25 25 12,5 150 - for Positive Inserts: VC_1103, VC_1303 and VC_1604 Application: O/D Profiling Approach 72,5° Axial 0° Radial 0° Profilling Clearance Angle β = 69,5° Neutral Holder Shown SVVC N Spare Parts Item Description Insert Screw Insert Key Anvil Anvil Screw EDP EDP EDP EDP SVVCN 1212 M11 SVVCN 1616 M11 015061 F2507T 018488 T7 - - - - SVVCN 2020 K11 SVVCN 1212 F13 SVVCN 1616 H13 015063 F3008T 013214 T9 - - - - SVVCN 2020 K13 SVVCN 2020 K16 034497 1335 028475 K5516 028740 SA3718 028478 SAS1750 SVVCN 2525 M16 www.kennametal.com C151
