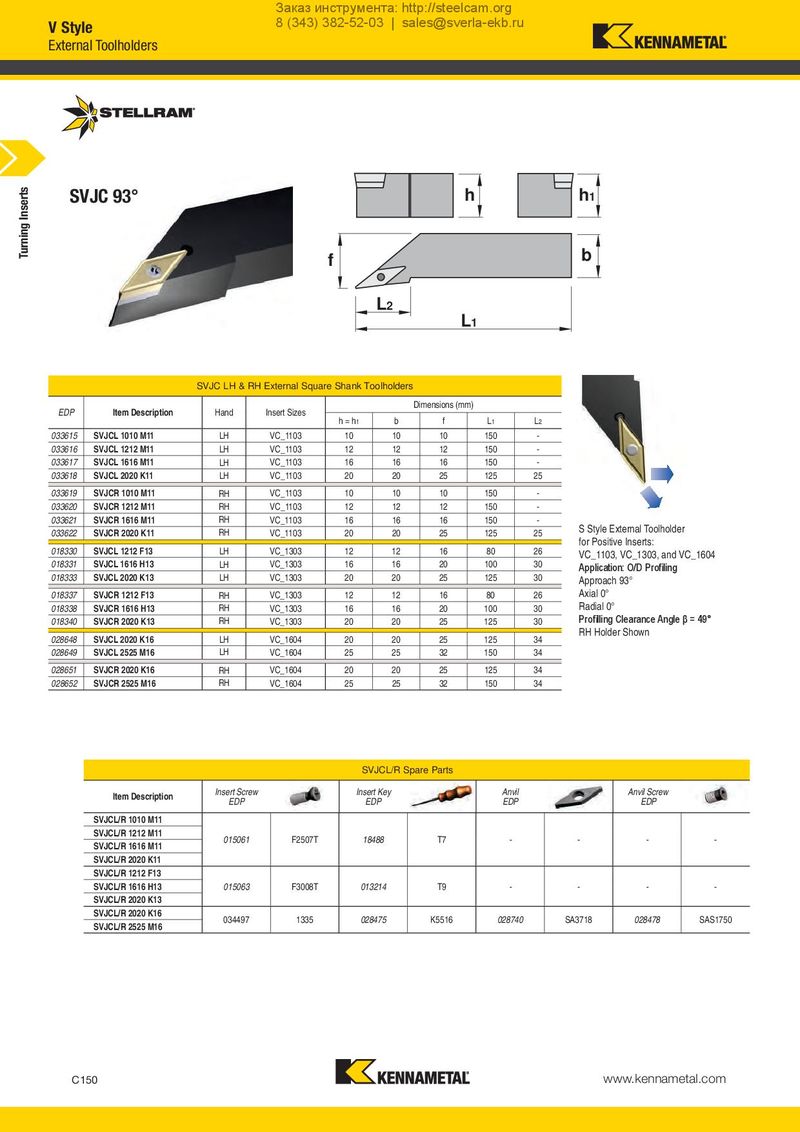

Каталог Stellram токарный инструмент - страница 151

Заказ инструмента: http://steelcam.org V Style 8 (343) 382-52-03 | sales@sverla-ekb.ru External Toolholders Turning Inserts SVJC 93° h h1 f b L2 L1 SVJC LH & RH External Square Shank Toolholders EDP Item Description Hand Insert Sizes Dimensions (mm) h = h1 b f L1 L2 033615 SVJCL 1010 M11 LH VC_1103 10 10 10 150 - 033616 SVJCL 1212 M11 LH VC_1103 12 12 12 150 - 033617 SVJCL 1616 M11 LH VC_1103 16 16 16 150 - 033618 SVJCL 2020 K11 LH VC_1103 20 20 25 125 25 033619 SVJCR 1010 M11 RH VC_1103 10 10 10 150 - 033620 SVJCR 1212 M11 RH VC_1103 12 12 12 150 - 033621 SVJCR 1616 M11 RH VC_1103 16 16 16 150 - S Style External Toolholder 033622 SVJCR 2020 K11 RH VC_1103 20 20 25 125 25 for Positive Inserts: 018330 SVJCL 1212 F13 LH VC_1303 12 12 16 80 26 VC_1103, VC_1303, and VC_1604 018331 SVJCL 1616 H13 LH VC_1303 16 16 20 100 30 Application: O/D Profiling 018333 SVJCL 2020 K13 LH VC_1303 20 20 25 125 30 Approach 93° 018337 SVJCR 1212 F13 RH VC_1303 12 12 16 80 26 Axial 0° 018338 SVJCR 1616 H13 RH VC_1303 16 16 20 100 30 Radial 0° 018340 SVJCR 2020 K13 RH VC_1303 20 20 25 125 30 Profilling Clearance Angle β = 49° 028648 SVJCL 2020 K16 LH VC_1604 20 20 25 125 34 RH Holder Shown 028649 SVJCL 2525 M16 LH VC_1604 25 25 32 150 34 028651 SVJCR 2020 K16 RH VC_1604 20 20 25 125 34 028652 SVJCR 2525 M16 RH VC_1604 25 25 32 150 34 SVJCL/R Spare Parts Item Description Insert Screw Insert Key Anvil Anvil Screw EDP EDP EDP EDP SVJCL/R 1010 M11 SVJCL/R 1212 M11 015061 F2507T 18488 T7 - - - - SVJCL/R 1616 M11 SVJCL/R 2020 K11 SVJCL/R 1212 F13 SVJCL/R 1616 H13 015063 F3008T 013214 T9 - - - - SVJCL/R 2020 K13 SVJCL/R 2020 K16 034497 1335 028475 K5516 028740 SA3718 028478 SAS1750 SVJCL/R 2525 M16 C150 www.kennametal.com
