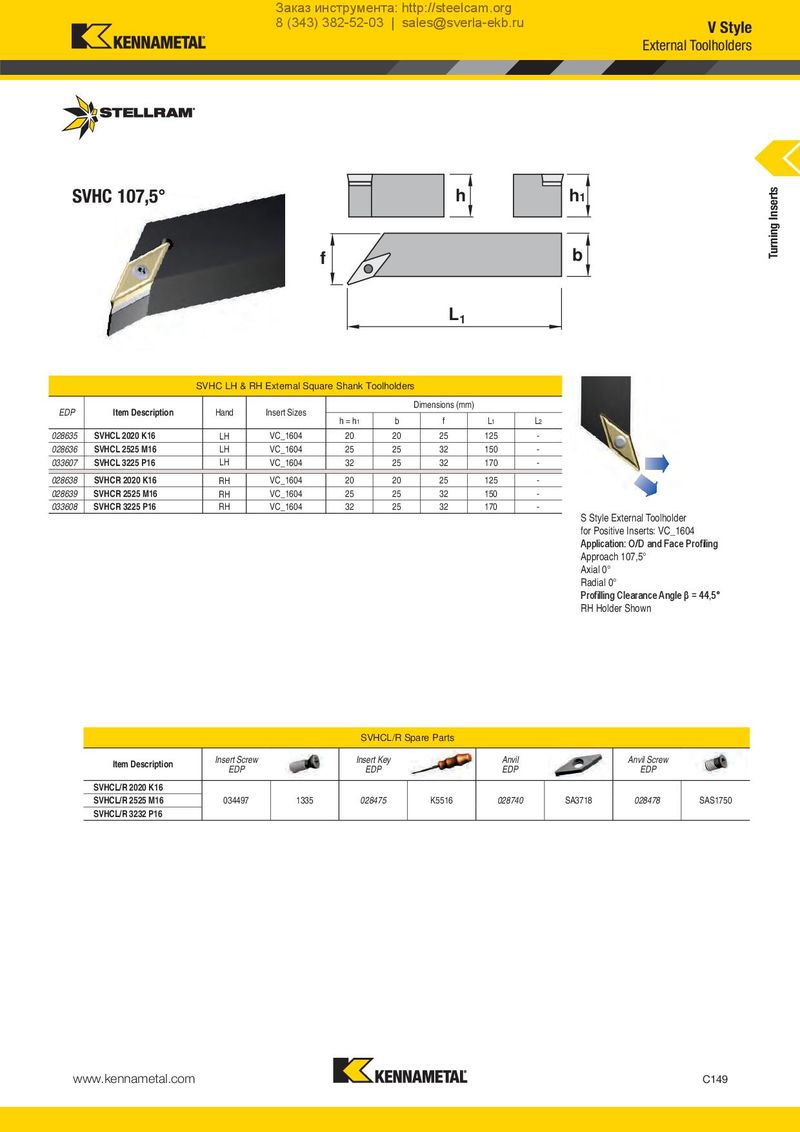

Заказ инструмента: http://steelcam.org 8 (343) 382-52-03 | sales@sverla-ekb.ru V Style External Toolholders SVHC 107,5° h h1 Turning Inserts f b L1 SVHC LH & RH External Square Shank Toolholders EDP Item Description Hand Insert Sizes Dimensions (mm) h = h1 b f L1 L2 028635 SVHCL 2020 K16 LH VC_1604 20 20 25 125 - 028636 SVHCL 2525 M16 LH VC_1604 25 25 32 150 - 033607 SVHCL 3225 P16 LH VC_1604 32 25 32 170 - 028638 SVHCR 2020 K16 RH VC_1604 20 20 25 125 - 028639 SVHCR 2525 M16 RH VC_1604 25 25 32 150 - 033608 SVHCR 3225 P16 RH VC_1604 32 25 32 170 - S Style External Toolholder for Positive Inserts: VC_1604 Application: O/D and Face Profiling Approach 107,5° Axial 0° Radial 0° Profilling Clearance Angle β = 44,5° RH Holder Shown SVHCL/R Spare Parts Item Description Insert Screw Insert Key Anvil Anvil Screw EDP EDP EDP EDP SVHCL/R 2020 K16 SVHCL/R 2525 M16 034497 1335 028475 K5516 028740 SA3718 028478 SAS1750 SVHCL/R 3232 P16 www.kennametal.com C149
