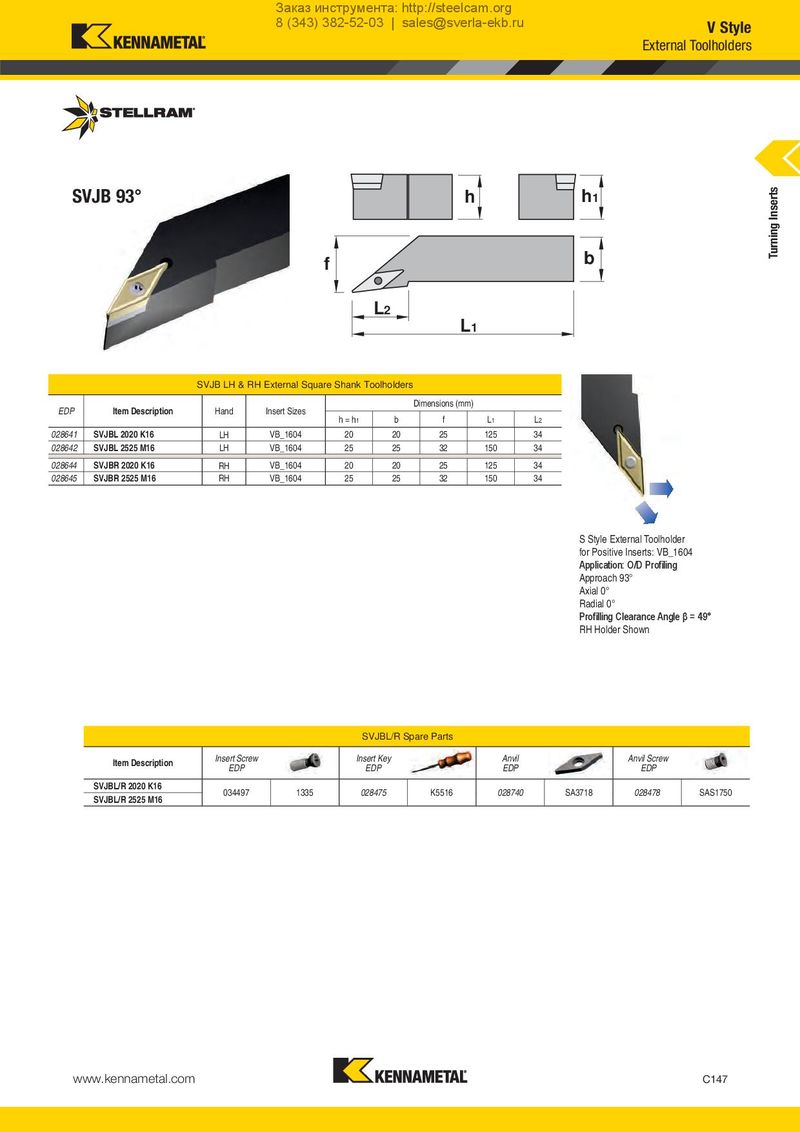

Заказ инструмента: http://steelcam.org 8 (343) 382-52-03 | sales@sverla-ekb.ru V Style External Toolholders SVJB 93° h h1 Turning Inserts f b L2 L1 SVJB LH & RH External Square Shank Toolholders EDP Item Description Hand Insert Sizes Dimensions (mm) h = h1 b f L1 L2 028641 SVJBL 2020 K16 LH VB_1604 20 20 25 125 34 028642 SVJBL 2525 M16 LH VB_1604 25 25 32 150 34 028644 SVJBR 2020 K16 RH VB_1604 20 20 25 125 34 028645 SVJBR 2525 M16 RH VB_1604 25 25 32 150 34 S Style External Toolholder for Positive Inserts: VB_1604 Application: O/D Profiling Approach 93° Axial 0° Radial 0° Profilling Clearance Angle β = 49° RH Holder Shown SVJBL/R Spare Parts Item Description Insert Screw Insert Key Anvil Anvil Screw EDP EDP EDP EDP SVJBL/R 2020 K16 034497 1335 028475 K5516 028740 SA3718 028478 SAS1750 SVJBL/R 2525 M16 www.kennametal.com C147
