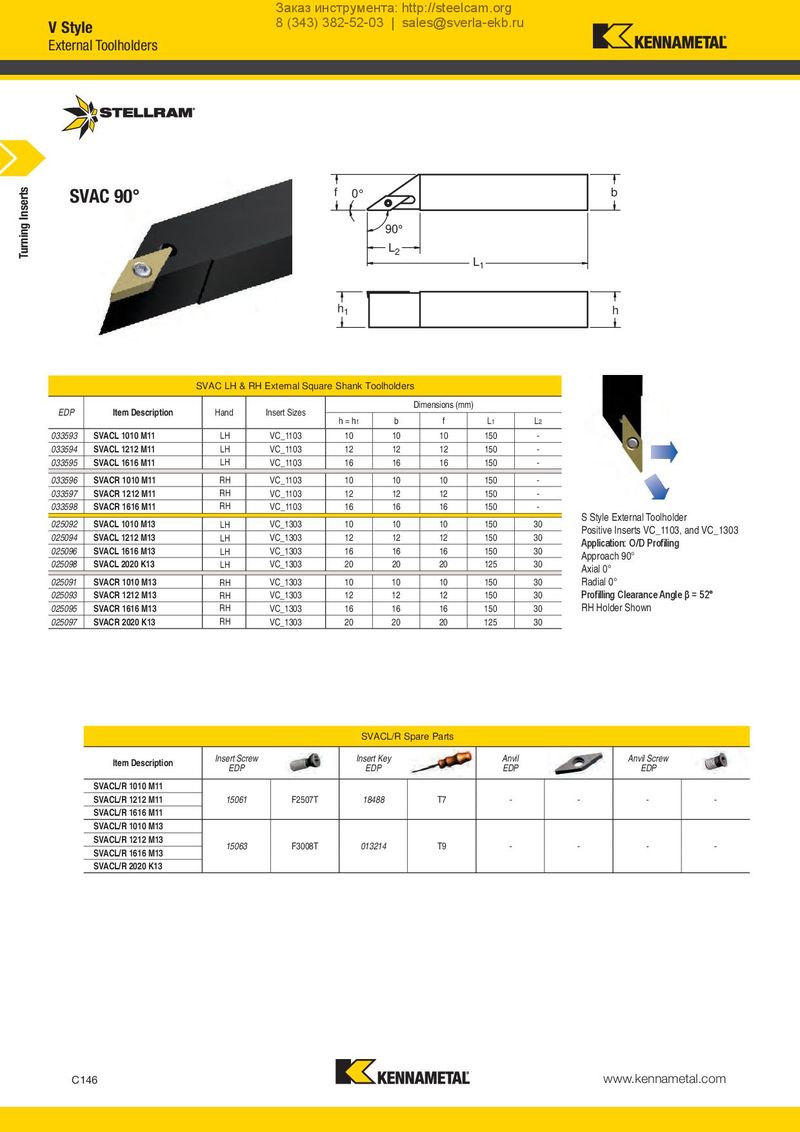

Заказ инструмента: http://steelcam.org V Style 8 (343) 382-52-03 | sales@sverla-ekb.ru External Toolholders Turning Inserts SVAC 90° f 0° b 90° L2 L1 h1 h SVAC LH & RH External Square Shank Toolholders EDP Item Description Hand Insert Sizes Dimensions (mm) h = h1 b f L1 L2 033593 SVACL 1010 M11 LH VC_1103 10 10 10 150 - 033594 SVACL 1212 M11 LH VC_1103 12 12 12 150 - 033595 SVACL 1616 M11 LH VC_1103 16 16 16 150 - 033596 SVACR 1010 M11 RH VC_1103 10 10 10 150 - 033597 SVACR 1212 M11 RH VC_1103 12 12 12 150 - 033598 SVACR 1616 M11 RH VC_1103 16 16 16 150 - 025092 SVACL 1010 M13 LH VC_1303 10 10 10 150 30 S Style External Toolholder 025094 SVACL 1212 M13 LH VC_1303 12 12 12 150 30 Positive Inserts VC_1103, and VC_1303 025096 SVACL 1616 M13 LH VC_1303 16 16 16 150 30 Application: O/D Profiling 025098 SVACL 2020 K13 LH VC_1303 20 20 20 125 30 Approach 90° Axial 0° 025091 SVACR 1010 M13 RH VC_1303 10 10 10 150 30 Radial 0° 025093 SVACR 1212 M13 RH VC_1303 12 12 12 150 30 Profilling Clearance Angle β = 52° 025095 SVACR 1616 M13 RH VC_1303 16 16 16 150 30 RH Holder Shown 025097 SVACR 2020 K13 RH VC_1303 20 20 20 125 30 SVACL/R Spare Parts Item Description Insert Screw Insert Key Anvil Anvil Screw EDP EDP EDP EDP SVACL/R 1010 M11 SVACL/R 1212 M11 15061 F2507T 18488 T7 - - - - SVACL/R 1616 M11 SVACL/R 1010 M13 SVACL/R 1212 M13 15063 F3008T 013214 T9 - - - - SVACL/R 1616 M13 SVACL/R 2020 K13 C146 www.kennametal.com
