Каталог Stellram токарный инструмент - страница 141

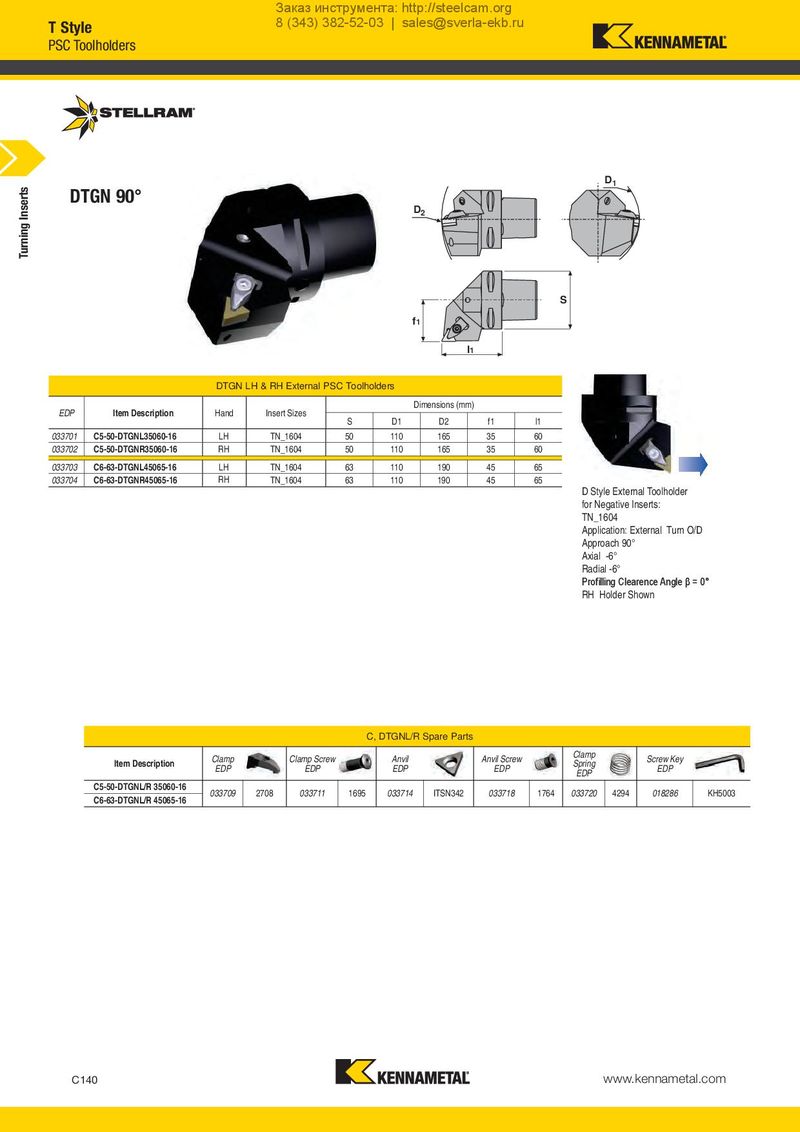

Заказ инструмента: http://steelcam.org T Style 8 (343) 382-52-03 | sales@sverla-ekb.ru PSC Toolholders D1 Turning Inserts DTGN 90° D2 S f1 l1 DTGN LH & RH External PSC Toolholders EDP Item Description Hand Insert Sizes Dimensions (mm) S D1 D2 f1 l1 033701 C5-50-DTGNL35060-16 LH TN_1604 50 110 165 35 60 033702 C5-50-DTGNR35060-16 RH TN_1604 50 110 165 35 60 033703 C6-63-DTGNL45065-16 LH TN_1604 63 110 190 45 65 033704 C6-63-DTGNR45065-16 RH TN_1604 63 110 190 45 65 D Style External Toolholder for Negative Inserts: TN_1604 Application: External Turn O/D Approach 90° Axial -6° Radial -6° Profilling Clearence Angle β = 0° RH Holder Shown C, DTGNL/R Spare Parts Clamp Clamp Screw Anvil Anvil Screw Clamp Screw Key Item Description EDP EDP EDP EDP Spring EDP EDP C5-50-DTGNL/R 35060-16 033709 2708 033711 1695 033714 ITSN342 033718 1764 033720 4294 018286 KH5003 C6-63-DTGNL/R 45065-16 C140 www.kennametal.com
