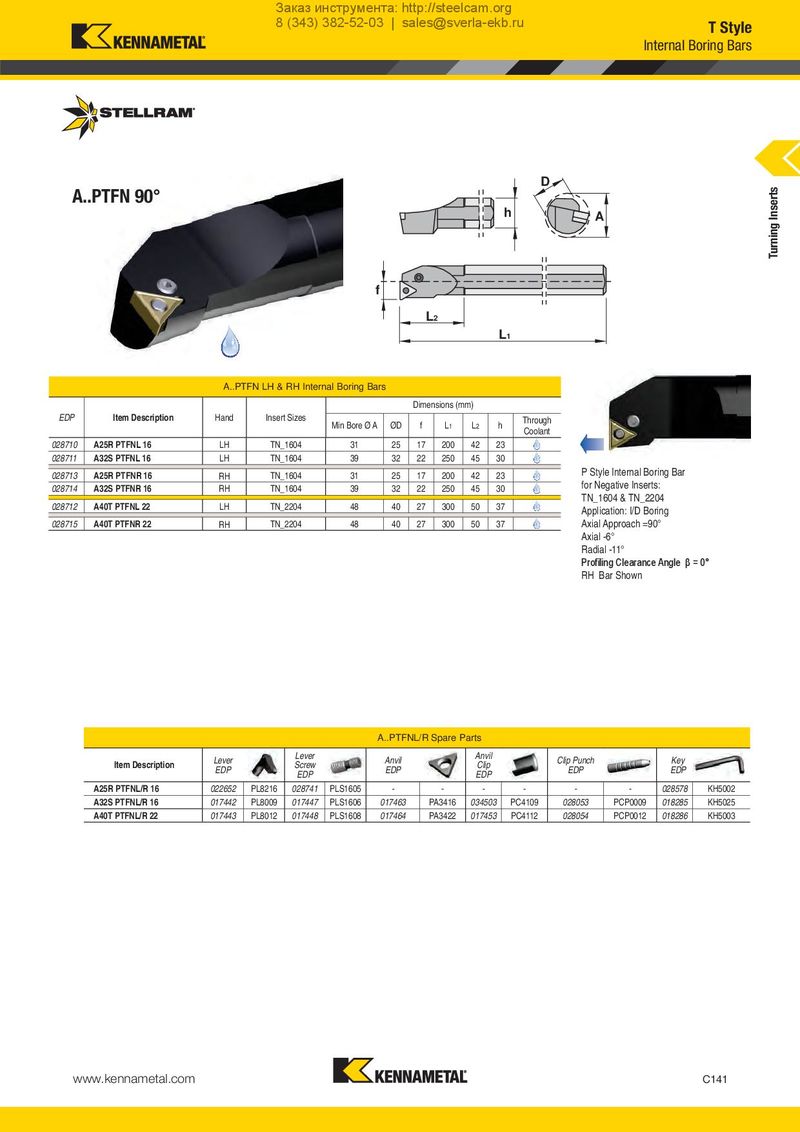

Каталог Stellram токарный инструмент - страница 142

Заказ инструмента: http://steelcam.org 8 (343) 382-52-03 | sales@sverla-ekb.ru T Style Internal Boring Bars D Turning Inserts A..PTFN 90° h A f L2 L1 A..PTFN LH & RH Internal Boring Bars Dimensions (mm) EDP Item Description Hand Insert Sizes Min Bore Ø A ØD f L1 L2 h Through Coolant 028710 A25R PTFNL 16 LH TN_1604 31 25 17 200 42 23 028711 A32S PTFNL 16 LH TN_1604 39 32 22 250 45 30 028713 A25R PTFNR 16 RH TN_1604 31 25 17 200 42 23 P Style Internal Boring Bar 028714 A32S PTFNR 16 RH TN_1604 39 32 22 250 45 30 for Negative Inserts: 028712 A40T PTFNL 22 LH TN_2204 48 40 27 300 50 37 TN_1604 & TN_2204 Application: I/D Boring 028715 A40T PTFNR 22 RH TN_2204 48 40 27 300 50 37 Axial Approach =90° Axial -6° Radial -11° Profiling Clearance Angle β = 0° RH Bar Shown A..PTFNL/R Spare Parts Lever Lever Anvil Anvil Clip Punch Key Item Description EDP Screw EDP Clip EDP EDP EDP EDP A25R PTFNL/R 16 022652 PL8216 028741 PLS1605 - - - - - - 028578 KH5002 A32S PTFNL/R 16 017442 PL8009 017447 PLS1606 017463 PA3416 034503 PC4109 028053 PCP0009 018285 KH5025 A40T PTFNL/R 22 017443 PL8012 017448 PLS1608 017464 PA3422 017453 PC4112 028054 PCP0012 018286 KH5003 www.kennametal.com C141
