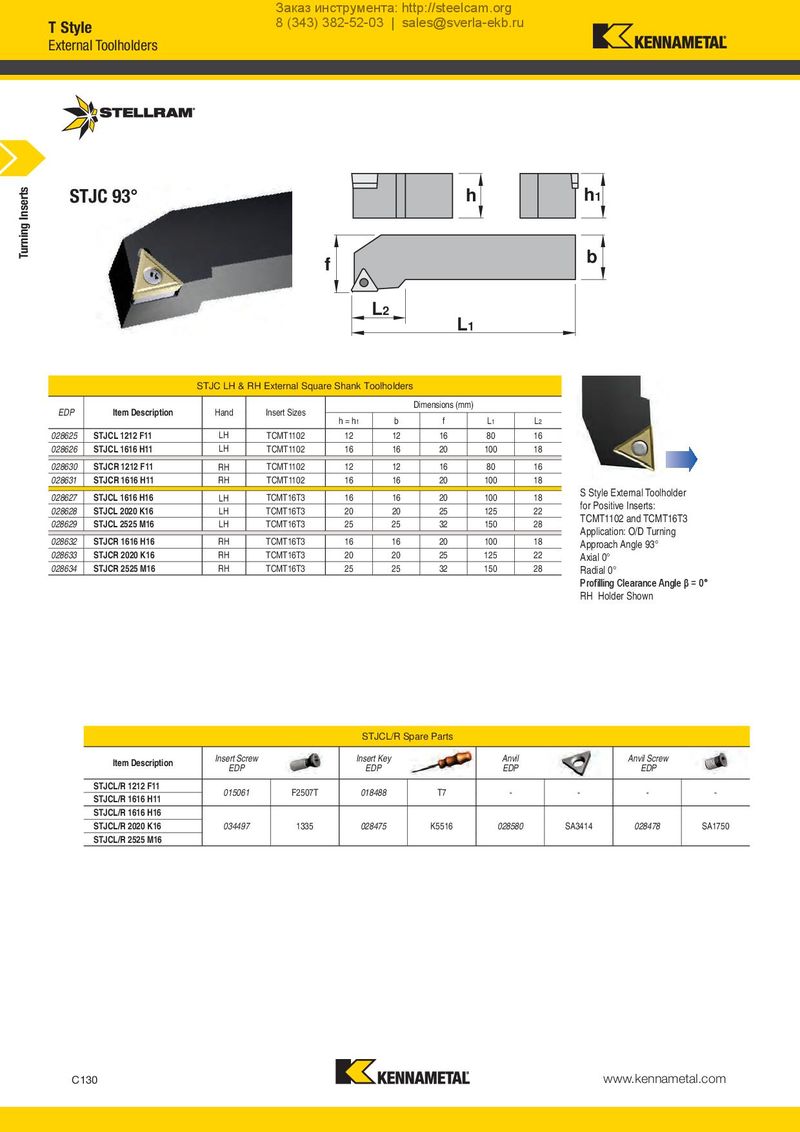

Заказ инструмента: http://steelcam.org T Style 8 (343) 382-52-03 | sales@sverla-ekb.ru External Toolholders STJC 93° Turning Inserts h h1 f b L2 L1 STJC LH & RH External Square Shank Toolholders Dimensions (mm) EDP Item Description Hand Insert Sizes h = h1 b f L1 L2 028625 STJCL 1212 F11 LH TCMT1102 12 12 16 80 16 028626 STJCL 1616 H11 LH TCMT1102 16 16 20 100 18 028630 STJCR 1212 F11 RH TCMT1102 12 12 16 80 16 028631 STJCR 1616 H11 RH TCMT1102 16 16 20 100 18 028627 STJCL 1616 H16 TCMT16T3 16 16 20 100 18 S Style External Toolholder LH 028628 STJCL 2020 K16 LH TCMT16T3 20 20 25 125 22 for Positive Inserts: LH TCMT1102 and TCMT16T3 028629 STJCL 2525 M16 TCMT16T3 25 25 32 150 28 Application: O/D Turning 028632 STJCR 1616 H16 RH TCMT16T3 16 16 20 100 18 Approach Angle 93° 028633 STJCR 2020 K16 RH TCMT16T3 20 20 25 125 22 Axial 0° 028634 STJCR 2525 M16 RH TCMT16T3 25 25 32 150 28 Radial 0° Profilling Clearance Angle β = 0° RH Holder Shown STJCL/R Spare Parts Insert Screw Insert Key Anvil Anvil Screw Item Description EDP EDP EDP EDP STJCL/R 1212 F11 015061 F2507T 018488 T7 - - - - STJCL/R 1616 H11 STJCL/R 1616 H16 STJCL/R 2020 K16 034497 1335 028475 K5516 028580 SA3414 028478 SA1750 STJCL/R 2525 M16 C130 www.kennametal.com
