Каталог Stellram токарный инструмент - страница 132

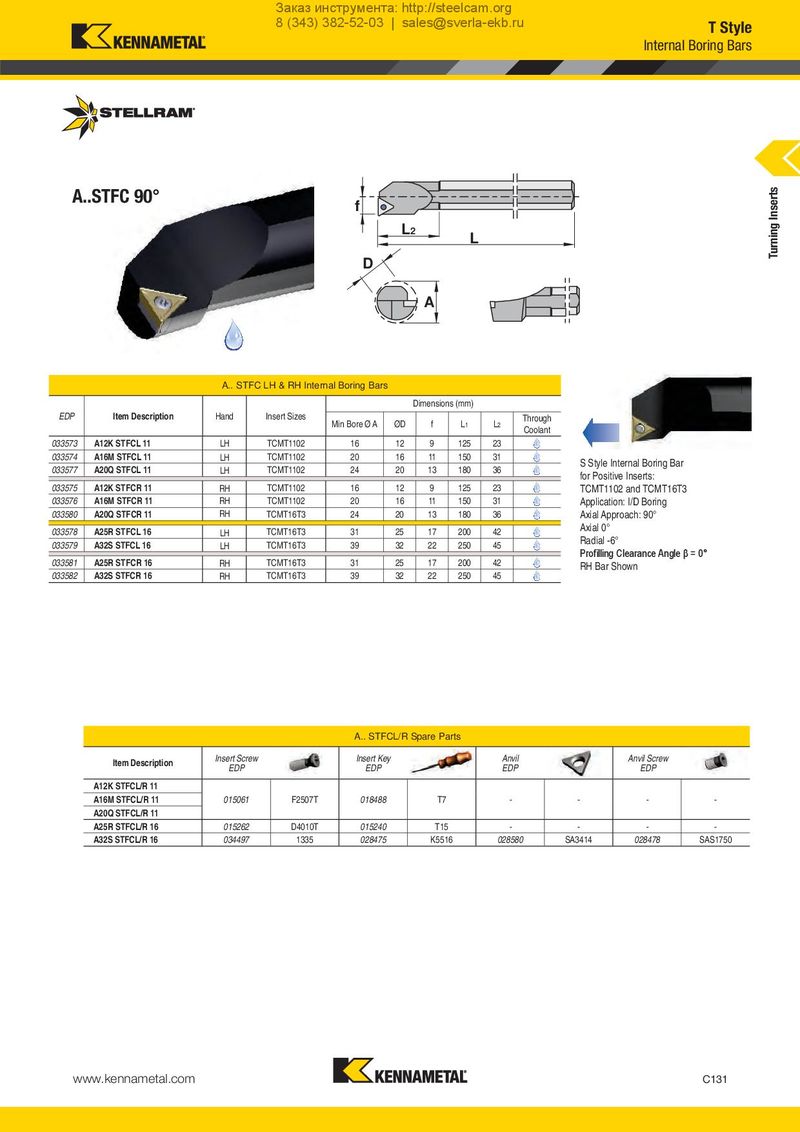

Заказ инструмента: http://steelcam.org 8 (343) 382-52-03 | sales@sverla-ekb.ru T Style Internal Boring Bars A..STFC 90° f Turning Inserts L2 L D A A.. STFC LH & RH Internal Boring Bars Dimensions (mm) EDP Item Description Hand Insert Sizes Min Bore Ø A ØD f L1 L2 Through Coolant 033573 A12K STFCL 11 LH TCMT1102 16 12 9 125 23 033574 A16M STFCL 11 LH TCMT1102 20 16 11 150 31 S Style Internal Boring Bar 033577 A20Q STFCL 11 LH TCMT1102 24 20 13 180 36 for Positive Inserts: 033575 A12K STFCR 11 RH TCMT1102 16 12 9 125 23 TCMT1102 and TCMT16T3 033576 A16M STFCR 11 RH TCMT1102 20 16 11 150 31 Application: I/D Boring 033580 A20Q STFCR 11 RH TCMT16T3 24 20 13 180 36 Axial Approach: 90° 033578 A25R STFCL 16 LH TCMT16T3 31 25 17 200 42 Axial 0° 033579 A32S STFCL 16 LH TCMT16T3 39 32 22 250 45 Radial -6° 033581 A25R STFCR 16 TCMT16T3 31 25 17 200 42 Profilling Clearance Angle β = 0° RH RH Bar Shown 033582 A32S STFCR 16 RH TCMT16T3 39 32 22 250 45 A.. STFCL/R Spare Parts Item Description Insert Screw Insert Key Anvil Anvil Screw EDP EDP EDP EDP A12K STFCL/R 11 A16M STFCL/R 11 015061 F2507T 018488 T7 - - - - A20Q STFCL/R 11 A25R STFCL/R 16 015262 D4010T 015240 T15 - - - - A32S STFCL/R 16 034497 1335 028475 K5516 028580 SA3414 028478 SAS1750 www.kennametal.com C131
