Каталог Stellram токарный инструмент - страница 127

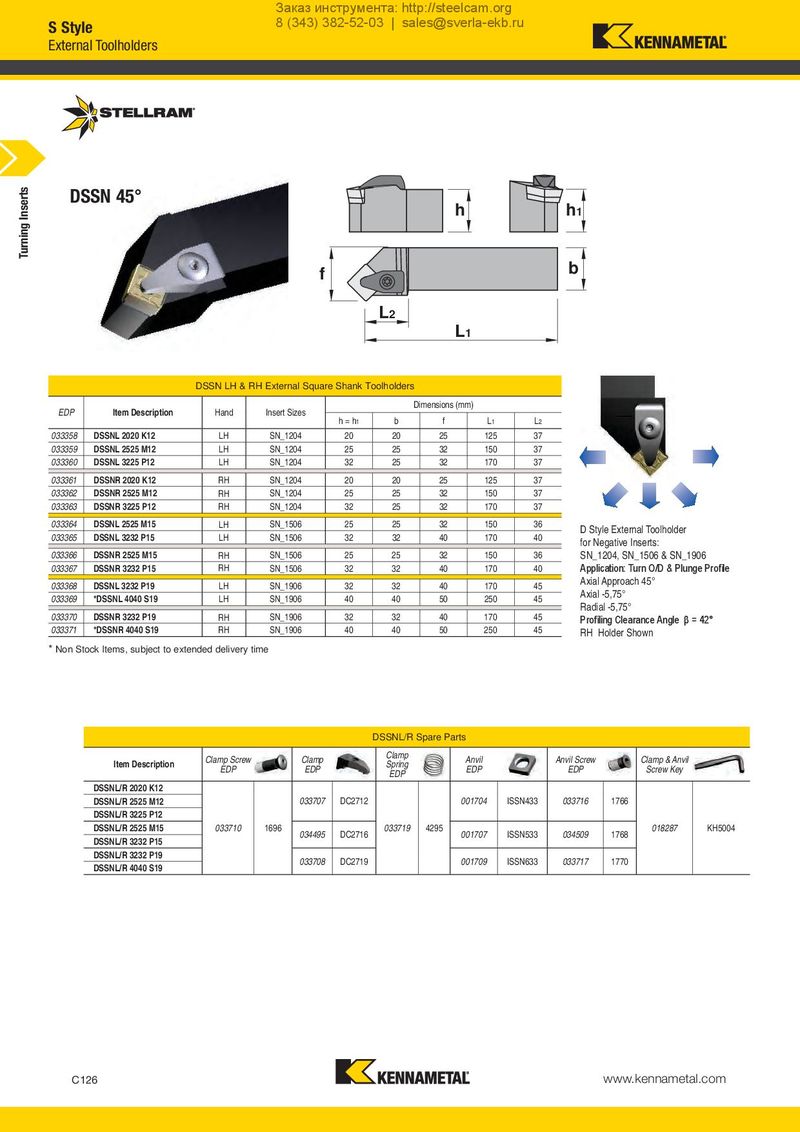

Заказ инструмента: http://steelcam.org S Style 8 (343) 382-52-03 | sales@sverla-ekb.ru External Toolholders Turning Inserts DSSN 45° h h1 f b L2 L1 DSSN LH & RH External Square Shank Toolholders EDP Item Description Hand Insert Sizes Dimensions (mm) h = h1 b f L1 L2 033358 DSSNL 2020 K12 LH SN_1204 20 20 25 125 37 033359 DSSNL 2525 M12 LH SN_1204 25 25 32 150 37 033360 DSSNL 3225 P12 LH SN_1204 32 25 32 170 37 033361 DSSNR 2020 K12 RH SN_1204 20 20 25 125 37 033362 DSSNR 2525 M12 RH SN_1204 25 25 32 150 37 033363 DSSNR 3225 P12 RH SN_1204 32 25 32 170 37 033364 DSSNL 2525 M15 LH SN_1506 25 25 32 150 36 D Style External Toolholder 033365 DSSNL 3232 P15 LH SN_1506 32 32 40 170 40 for Negative Inserts: 033366 DSSNR 2525 M15 RH SN_1506 25 25 32 150 36 SN_1204, SN_1506 & SN_1906 033367 DSSNR 3232 P15 RH SN_1506 32 32 40 170 40 Application: Turn O/D & Plunge Profile 033368 DSSNL 3232 P19 LH SN_1906 32 32 40 170 45 Axial Approach 45° 033369 *DSSNL 4040 S19 LH SN_1906 40 40 50 250 45 Axial -5,75° Radial -5,75° 033370 DSSNR 3232 P19 RH SN_1906 32 32 40 170 45 Profiling Clearance Angle β = 42° 033371 *DSSNR 4040 S19 RH SN_1906 40 40 50 250 45 RH Holder Shown * Non Stock Items, subject to extended delivery time DSSNL/R Spare Parts Clamp Screw Clamp Clamp Anvil Anvil Screw Clamp & Anvil Item Description EDP EDP Spring EDP EDP Screw Key EDP DSSNL/R 2020 K12 DSSNL/R 2525 M12 033707 DC2712 001704 ISSN433 033716 1766 DSSNL/R 3225 P12 DSSNL/R 2525 M15 033710 1696 034495 DC2716 033719 4295 001707 ISSN533 034509 1768 018287 KH5004 DSSNL/R 3232 P15 DSSNL/R 3232 P19 033708 DC2719 001709 ISSN633 033717 1770 DSSNL/R 4040 S19 C126 www.kennametal.com
