Каталог Stellram токарный инструмент - страница 126

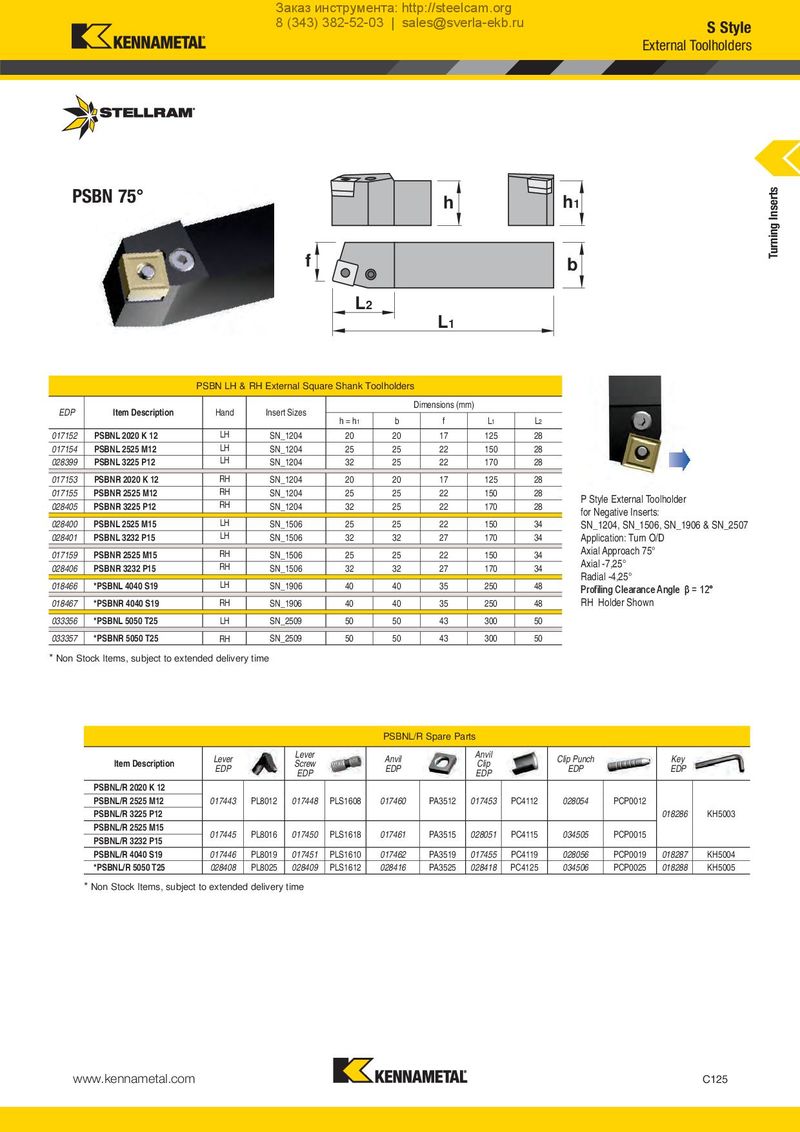

Заказ инструмента: http://steelcam.org 8 (343) 382-52-03 | sales@sverla-ekb.ru S Style External Toolholders PSBN 75° h h1 Turning Inserts f b L2 L1 PSBN LH & RH External Square Shank Toolholders EDP Item Description Hand Insert Sizes Dimensions (mm) h = h1 b f L1 L2 017152 PSBNL 2020 K 12 LH SN_1204 20 20 17 125 28 017154 PSBNL 2525 M12 LH SN_1204 25 25 22 150 28 028399 PSBNL 3225 P12 LH SN_1204 32 25 22 170 28 017153 PSBNR 2020 K 12 RH SN_1204 20 20 17 125 28 017155 PSBNR 2525 M12 RH SN_1204 25 25 22 150 28 P Style External Toolholder 028405 PSBNR 3225 P12 RH SN_1204 32 25 22 170 28 for Negative Inserts: 028400 PSBNL 2525 M15 LH SN_1506 25 25 22 150 34 SN_1204, SN_1506, SN_1906 & SN_2507 028401 PSBNL 3232 P15 LH SN_1506 32 32 27 170 34 Application: Turn O/D 017159 PSBNR 2525 M15 RH SN_1506 25 25 22 150 34 Axial Approach 75° 028406 PSBNR 3232 P15 RH SN_1506 32 32 27 170 34 Axial -7,25° 018466 *PSBNL 4040 S19 LH SN_1906 40 40 35 250 48 Radial -4,25° Profiling Clearance Angle β = 12° 018467 *PSBNR 4040 S19 RH SN_1906 40 40 35 250 48 RH Holder Shown 033356 *PSBNL 5050 T25 LH SN_2509 50 50 43 300 50 033357 *PSBNR 5050 T25 RH SN_2509 50 50 43 300 50 * Non Stock Items, subject to extended delivery time PSBNL/R Spare Parts Lever Lever Anvil Anvil Clip Punch Key Item Description EDP Screw EDP Clip EDP EDP EDP EDP PSBNL/R 2020 K 12 PSBNL/R 2525 M12 017443 PL8012 017448 PLS1608 017460 PA3512 017453 PC4112 028054 PCP0012 PSBNL/R 3225 P12 018286 KH5003 PSBNL/R 2525 M15 017445 PL8016 017450 PLS1618 017461 PA3515 028051 PC4115 034505 PCP0015 PSBNL/R 3232 P15 PSBNL/R 4040 S19 017446 PL8019 017451 PLS1610 017462 PA3519 017455 PC4119 028056 PCP0019 018287 KH5004 *PSBNL/R 5050 T25 028408 PL8025 028409 PLS1612 028416 PA3525 028418 PC4125 034506 PCP0025 018288 KH5005 * Non Stock Items, subject to extended delivery time www.kennametal.com C125
