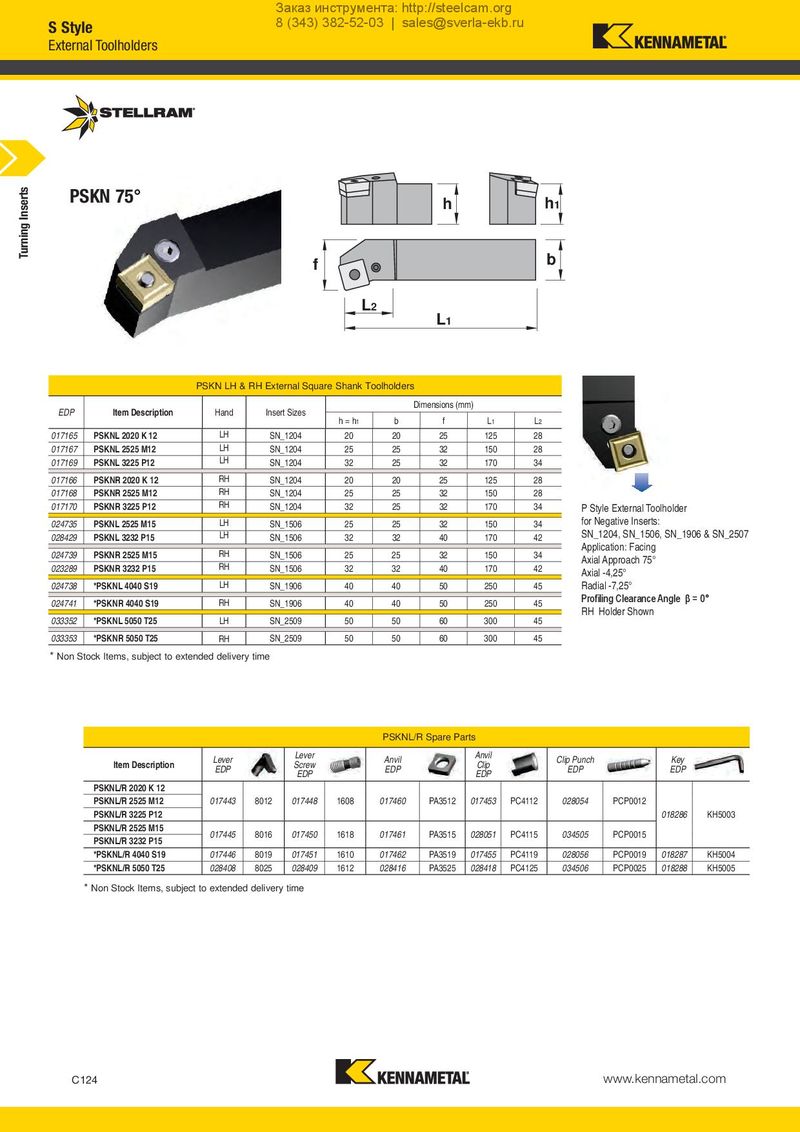

Заказ инструмента: http://steelcam.org S Style 8 (343) 382-52-03 | sales@sverla-ekb.ru External Toolholders Turning Inserts PSKN 75° h h1 f b L2 L1 PSKN LH & RH External Square Shank Toolholders EDP Item Description Hand Insert Sizes Dimensions (mm) h = h1 b f L1 L2 017165 PSKNL 2020 K 12 LH SN_1204 20 20 25 125 28 017167 PSKNL 2525 M12 LH SN_1204 25 25 32 150 28 017169 PSKNL 3225 P12 LH SN_1204 32 25 32 170 34 017166 PSKNR 2020 K 12 RH SN_1204 20 20 25 125 28 017168 PSKNR 2525 M12 RH SN_1204 25 25 32 150 28 017170 PSKNR 3225 P12 RH SN_1204 32 25 32 170 34 P Style External Toolholder 024735 PSKNL 2525 M15 LH SN_1506 25 25 32 150 34 for Negative Inserts: 028429 PSKNL 3232 P15 LH SN_1506 32 32 40 170 42 SN_1204, SN_1506, SN_1906 & SN_2507 024739 PSKNR 2525 M15 RH SN_1506 25 25 32 150 34 Application: Facing 023289 PSKNR 3232 P15 RH SN_1506 32 32 40 170 42 Axial Approach 75° Axial -4,25° 024738 *PSKNL 4040 S19 LH SN_1906 40 40 50 250 45 Radial -7,25° 024741 *PSKNR 4040 S19 RH SN_1906 40 40 50 250 45 Profiling Clearance Angle β = 0° 033352 *PSKNL 5050 T25 LH SN_2509 50 50 60 300 45 RH Holder Shown 033353 *PSKNR 5050 T25 RH SN_2509 50 50 60 300 45 * Non Stock Items, subject to extended delivery time PSKNL/R Spare Parts Lever Lever Anvil Anvil Clip Punch Key Item Description EDP Screw EDP Clip EDP EDP EDP EDP PSKNL/R 2020 K 12 PSKNL/R 2525 M12 017443 8012 017448 1608 017460 PA3512 017453 PC4112 028054 PCP0012 PSKNL/R 3225 P12 018286 KH5003 PSKNL/R 2525 M15 017445 8016 017450 1618 017461 PA3515 028051 PC4115 034505 PCP0015 PSKNL/R 3232 P15 *PSKNL/R 4040 S19 017446 8019 017451 1610 017462 PA3519 017455 PC4119 028056 PCP0019 018287 KH5004 *PSKNL/R 5050 T25 028408 8025 028409 1612 028416 PA3525 028418 PC4125 034506 PCP0025 018288 KH5005 * Non Stock Items, subject to extended delivery time C124 www.kennametal.com
