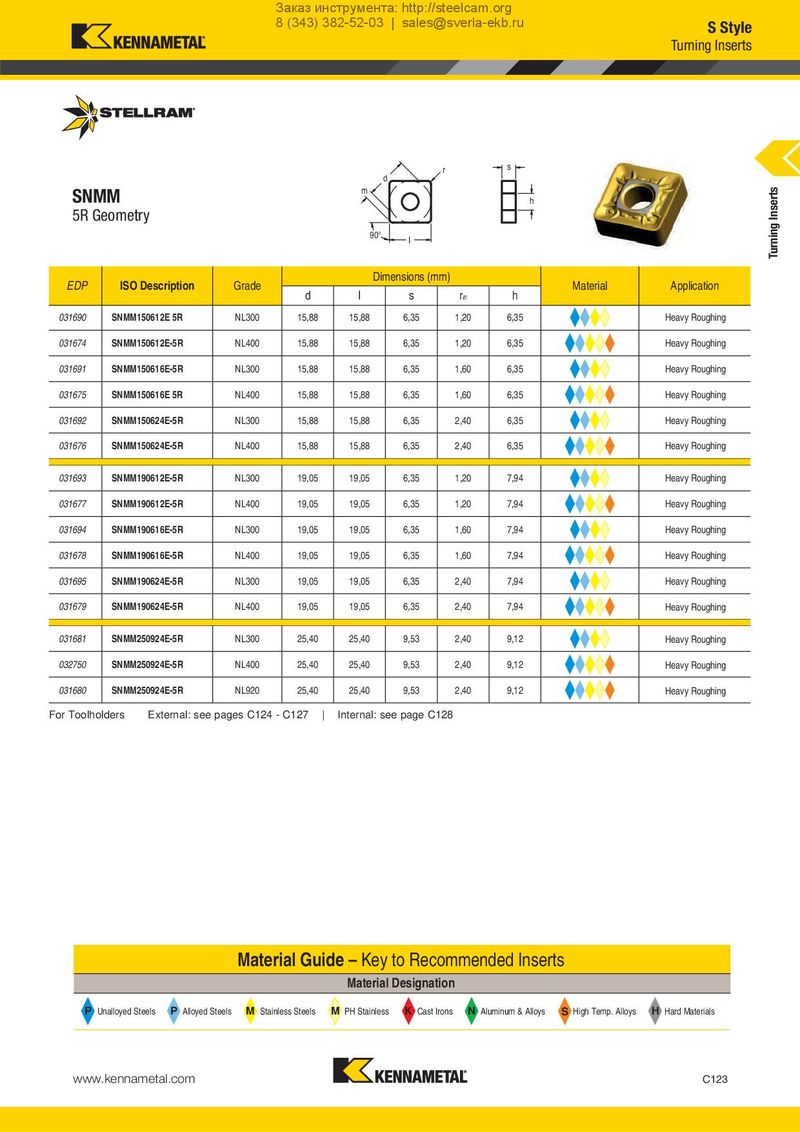

Каталог Stellram токарный инструмент - страница 124

Заказ инструмента: http://steelcam.org 8 (343) 382-52-03 | sales@sverla-ekb.ru S Style Turning Inserts r s d SNMM m Turning Inserts h 5R Geometry 90° I EDP ISO Description Grade Dimensions (mm) Material Application d I s r h 031690 SNMM150612E 5R NL300 15,88 15,88 6,35 1,20 6,35 Heavy Roughing 031674 SNMM150612E-5R NL400 15,88 15,88 6,35 1,20 6,35 Heavy Roughing 031691 SNMM150616E-5R NL300 15,88 15,88 6,35 1,60 6,35 Heavy Roughing 031675 SNMM150616E 5R NL400 15,88 15,88 6,35 1,60 6,35 Heavy Roughing 031692 SNMM150624E-5R NL300 15,88 15,88 6,35 2,40 6,35 Heavy Roughing 031676 SNMM150624E-5R NL400 15,88 15,88 6,35 2,40 6,35 Heavy Roughing 031693 SNMM190612E-5R NL300 19,05 19,05 6,35 1,20 7,94 Heavy Roughing 031677 SNMM190612E-5R NL400 19,05 19,05 6,35 1,20 7,94 Heavy Roughing 031694 SNMM190616E-5R NL300 19,05 19,05 6,35 1,60 7,94 Heavy Roughing 031678 SNMM190616E-5R NL400 19,05 19,05 6,35 1,60 7,94 Heavy Roughing 031695 SNMM190624E-5R NL300 19,05 19,05 6,35 2,40 7,94 Heavy Roughing 031679 SNMM190624E-5R NL400 19,05 19,05 6,35 2,40 7,94 Heavy Roughing 031681 SNMM250924E-5R NL300 25,40 25,40 9,53 2,40 9,12 Heavy Roughing 032750 SNMM250924E-5R NL400 25,40 25,40 9,53 2,40 9,12 Heavy Roughing 031680 SNMM250924E-5R NL920 25,40 25,40 9,53 2,40 9,12 Heavy Roughing For Toolholders External: see pages C124 - C127 | Internal: see page C128 Material Guide – Key to Recommended Inserts Material Designation P Unalloyed Steels P Alloyed Steels M Stainless Steels M PH Stainless K Cast Irons N Aluminum & Alloys S High Temp. Alloys H Hard Materials www.kennametal.com C123
