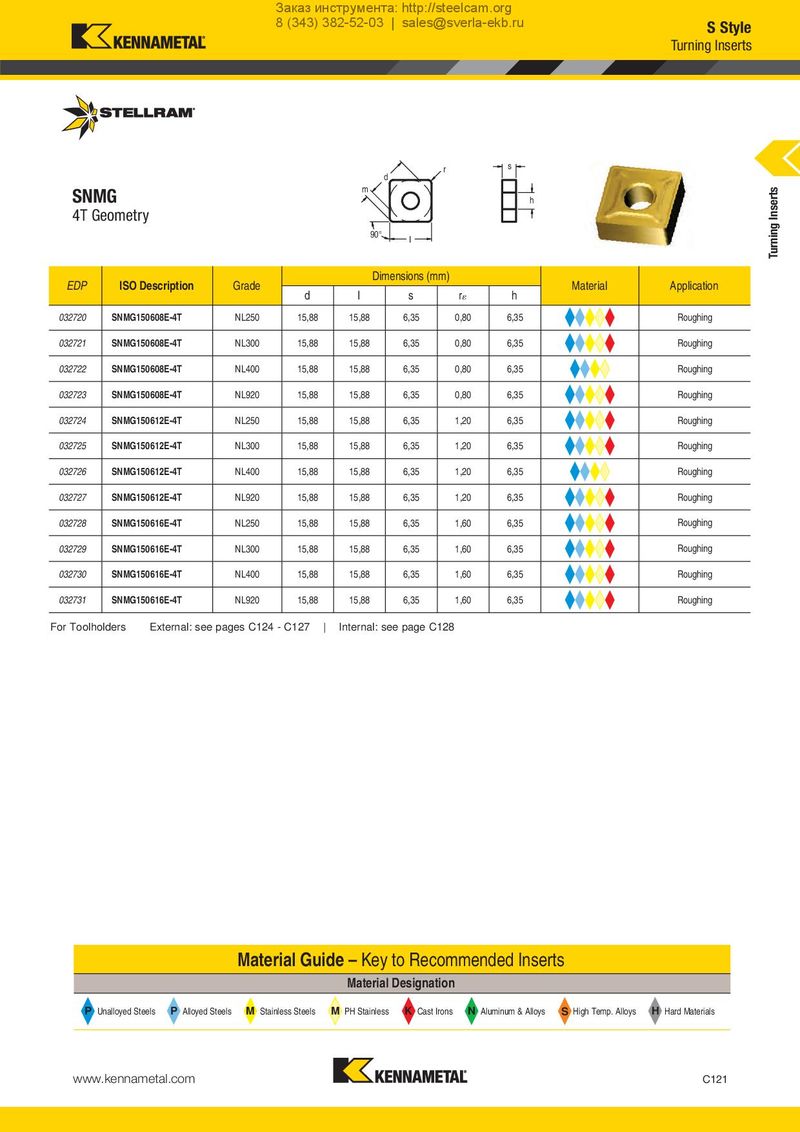

Каталог Stellram токарный инструмент - страница 122

Заказ инструмента: http://steelcam.org 8 (343) 382-52-03 | sales@sverla-ekb.ru S Style Turning Inserts r s d SNMG m Turning Inserts h 4T Geometry 90° I EDP ISO Description Grade Dimensions (mm) Material Application d I s r h 032720 SNMG150608E-4T NL250 15,88 15,88 6,35 0,80 6,35 Roughing 032721 SNMG150608E-4T NL300 15,88 15,88 6,35 0,80 6,35 Roughing 032722 SNMG150608E-4T NL400 15,88 15,88 6,35 0,80 6,35 Roughing 032723 SNMG150608E-4T NL920 15,88 15,88 6,35 0,80 6,35 Roughing 032724 SNMG150612E-4T NL250 15,88 15,88 6,35 1,20 6,35 Roughing 032725 SNMG150612E-4T NL300 15,88 15,88 6,35 1,20 6,35 Roughing 032726 SNMG150612E-4T NL400 15,88 15,88 6,35 1,20 6,35 Roughing 032727 SNMG150612E-4T NL920 15,88 15,88 6,35 1,20 6,35 Roughing 032728 SNMG150616E-4T NL250 15,88 15,88 6,35 1,60 6,35 Roughing 032729 SNMG150616E-4T NL300 15,88 15,88 6,35 1,60 6,35 Roughing 032730 SNMG150616E-4T NL400 15,88 15,88 6,35 1,60 6,35 Roughing 032731 SNMG150616E-4T NL920 15,88 15,88 6,35 1,60 6,35 Roughing For Toolholders External: see pages C124 - C127 | Internal: see page C128 Material Guide – Key to Recommended Inserts Material Designation P Unalloyed Steels P Alloyed Steels M Stainless Steels M PH Stainless K Cast Irons N Aluminum & Alloys S High Temp. Alloys H Hard Materials www.kennametal.com C121
