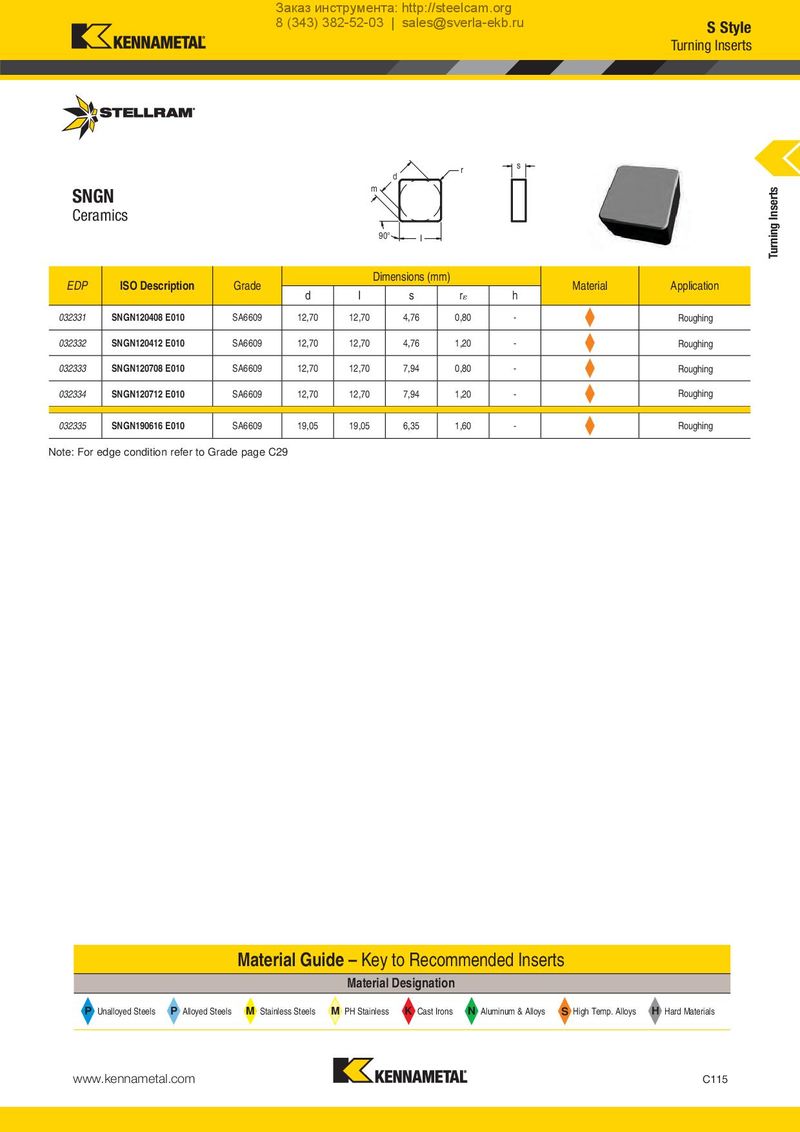

r s d SNGN m

Ceramics

90° I

EDPISO DescriptionGradedDim Iensions(m sm) rhMaterialApplication
032331SNGN120408 E010SA660912,7012,704,760,80-Roughing
032332SNGN120412 E010SA660912,7012,704,761,20-Roughing
032333SNGN120708 E010SA660912,7012,707,940,80-Roughing
032334SNGN120712 E010SA660912,7012,707,941,20-Roughing
032335SNGN190616 E010SA660919,0519,056,351,60-Roughing

Note: For edge condition refer to Grade page C29

Material Guide – Key to Recommended Inserts

Material Designation

P Unalloyed Steels P Alloyed Steels M Stainless Steels M PH Stainless K Cast Irons N Aluminum & Alloys S High Temp. Alloys H Hard Materials
