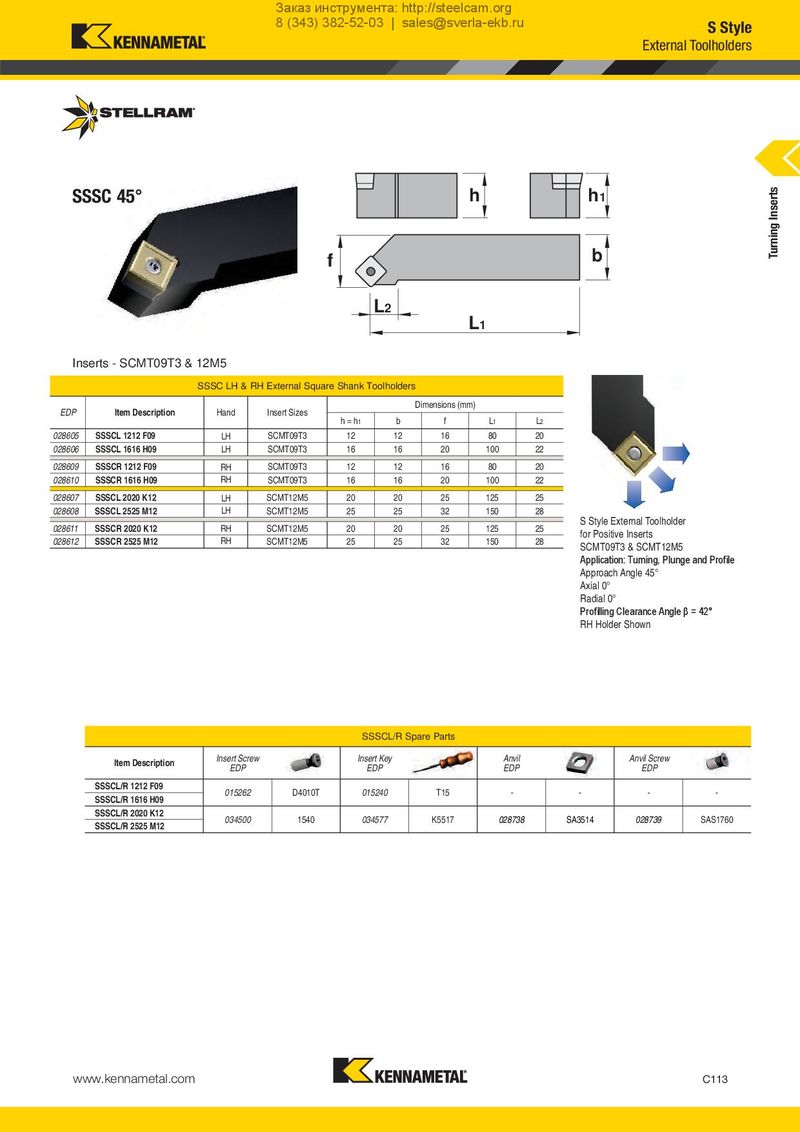

Заказ инструмента: http://steelcam.org 8 (343) 382-52-03 | sales@sverla-ekb.ru S Style External Toolholders SSSC 45° h h1 Turning Inserts f b L2 L1 Inserts - SCMT09T3 & 12M5 SSSC LH & RH External Square Shank Toolholders EDP Item Description Hand Insert Sizes Dimensions (mm) h = h1 b f L1 L2 028605 SSSCL 1212 F09 LH SCMT09T3 12 12 16 80 20 028606 SSSCL 1616 H09 LH SCMT09T3 16 16 20 100 22 028609 SSSCR 1212 F09 RH SCMT09T3 12 12 16 80 20 028610 SSSCR 1616 H09 RH SCMT09T3 16 16 20 100 22 028607 SSSCL 2020 K12 LH SCMT12M5 20 20 25 125 25 028608 SSSCL 2525 M12 LH SCMT12M5 25 25 32 150 28 028611 SSSCR 2020 K12 RH SCMT12M5 20 20 25 125 25 S Style External Toolholder 028612 SSSCR 2525 M12 RH SCMT12M5 25 25 32 150 28 for Positive Inserts SCMT09T3 & SCMT12M5 Application: Turning, Plunge and Profile Approach Angle 45° Axial 0° Radial 0° Profilling Clearance Angle β = 42° RH Holder Shown SSSCL/R Spare Parts Item Description Insert Screw Insert Key Anvil Anvil Screw EDP EDP EDP EDP SSSCL/R 1212 F09 015262 D4010T 015240 T15 - - - - SSSCL/R 1616 H09 SSSCL/R 2020 K12 034500 1540 034577 K5517 028738 SA3514 028739 SAS1760 SSSCL/R 2525 M12 www.kennametal.com C113
