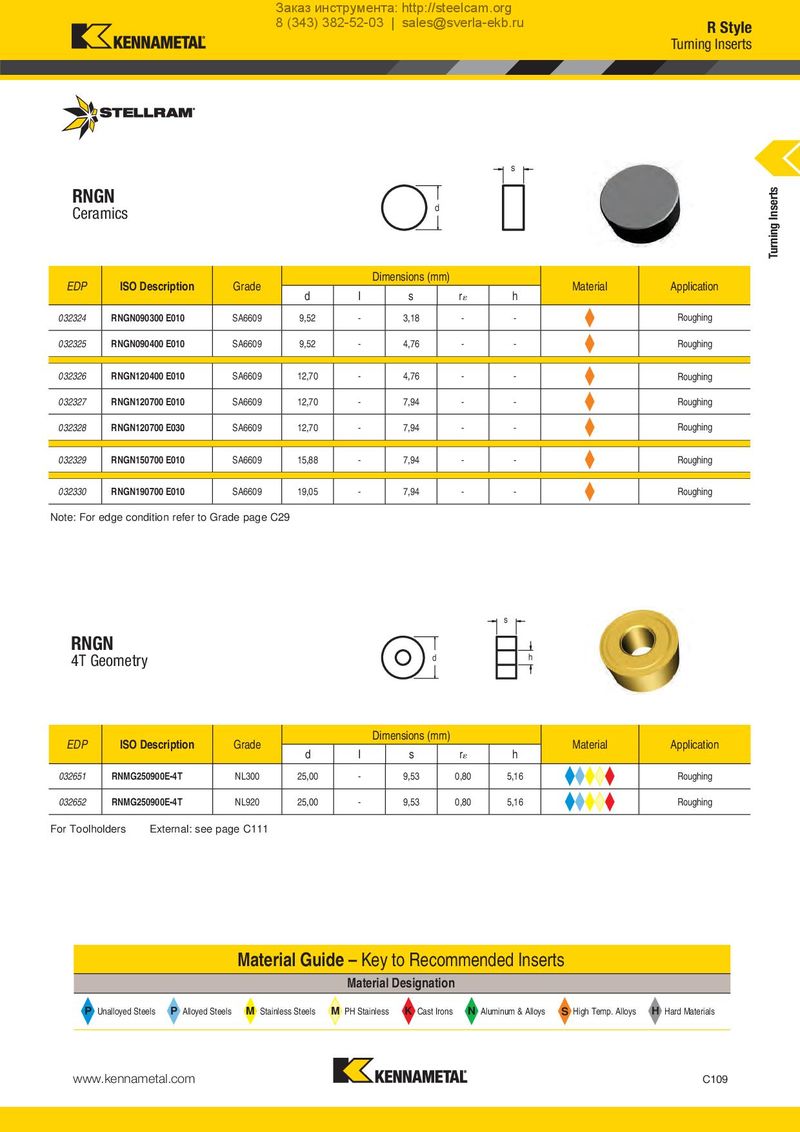

RNGN
Ceramics d
| EDP | ISO Description | Grade | Di | mensions(m | m) | Material | Application | ||
| d | I | s | r | h | |||||
| 032324 | RNGN090300 E010 | SA6609 | 9,52 | - | 3,18 | - | - | Roughing | |
| 032325 | RNGN090400 E010 | SA6609 | 9,52 | - | 4,76 | - | - | Roughing | |
| 032326 | RNGN120400 E010 | SA6609 | 12,70 | - | 4,76 | - | - | Roughing | |
| 032327 | RNGN120700 E010 | SA6609 | 12,70 | - | 7,94 | - | - | Roughing | |
| 032328 | RNGN120700 E030 | SA6609 | 12,70 | - | 7,94 | - | - | Roughing | |
| 032329 | RNGN150700 E010 | SA6609 | 15,88 | - | 7,94 | - | - | Roughing | |
| 032330 | RNGN190700 E010 | SA6609 | 19,05 | - | 7,94 | - | - | Roughing |
Note: For edge condition refer to Grade page C29
s
RNGN
4T Geometry d h
| EDP | ISO Description | Grade | d | Dimensions(m I s | m) r | h | Material | Application |
| 032651 | RNMG250900E-4T | NL300 | 25,00 | - 9,53 | 0,80 | 5,16 | Roughing | |
| 032652 | RNMG250900E-4T | NL920 | 25,00 | - 9,53 | 0,80 | 5,16 | Roughing |
For Toolholders External: see page C111
Material Guide – Key to Recommended Inserts
Material Designation
P Unalloyed Steels P Alloyed Steels M Stainless Steels M PH Stainless K Cast Irons N Aluminum & Alloys S High Temp. Alloys H Hard Materials
