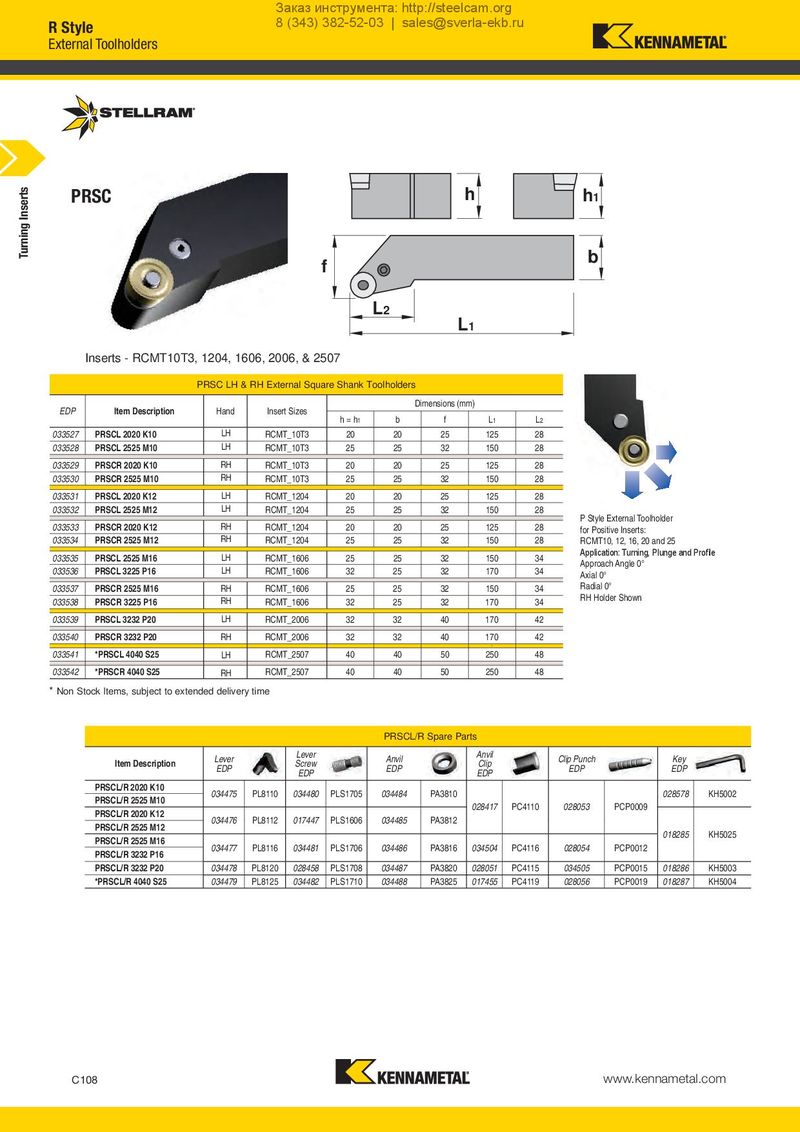

PRSC h h
1
f
Inserts - RCMT10T3, 1204, 1606, 2006, & 2507
L2
b
L1
| EDP | Item Description | PRSC LH & Hand | RH External Squa Insert Sizes | re Shank To | olholders Di | mensions (m | m) | ||
| h = h1 | b | f | L1 | L2 | |||||
| 033527 | PRSCL 2020 K10 | LH | RCMT10T3 | 20 | 20 | 25 | 125 | 28 | |
| 033528 | PRSCL 2525 M10 | LH | RCMT10T3 | 25 | 25 | 32 | 150 | 28 | |
| 033529 | PRSCR 2020 K10 | RH | RCMT10T3 | 20 | 20 | 25 | 125 | 28 | |
| 033530 | PRSCR 2525 M10 | RH | RCMT10T3 | 25 | 25 | 32 | 150 | 28 | |
| 033531 | PRSCL 2020 K12 | LH | RCMT1204 | 20 | 20 | 25 | 125 | 28 | |
| 033532 | PRSCL 2525 M12 | LH | RCMT1204 | 25 | 25 | 32 | 150 | 28 | PStl Etl Tlhld |
| 033533 | PRSCR 2020 K12 | RH | RCMT1204 | 20 | 20 | 25 | 125 | 28 | ye xerna oooer for Positive Inserts: |
| 033534 | PRSCR 2525 M12 | RH | RCMT1204 | 25 | 25 | 32 | 150 | 28 | RCMT10, 12, 16, 20 and 25 i |
| 033535 | PRSCL 2525 M16 | LH | RCMT1606 | 25 | 25 | 32 | 150 | 34 | Application: Turning, Plunge and Profile Aroach Anle 0° |
| 033536 | PRSCL 3225 P16 | LH | RCMT1606 | 32 | 25 | 32 | 170 | 34 | pp g Axial 0° |
| 033537 | PRSCR 2525 M16 | RH | RCMT1606 | 25 | 25 | 32 | 150 | 34 | Radial 0° |
| 033538 | PRSCR 3225 P16 | RH | RCMT1606 | 32 | 25 | 32 | 170 | 34 | RH Holder Shown |
| 033539 | PRSCL 3232 P20 | LH | RCMT2006 | 32 | 32 | 40 | 170 | 42 | |
| 033540 | PRSCR 3232 P20 | RH | RCMT2006 | 32 | 32 | 40 | 170 250 | 42 | |
| 033541 | PRSCL 4040 S25 | LH | RCMT2507 | 40 | 40 | 50 | 250 | 48 | |
| 033542 | PRSCR 4040 S25 | RH | RCMT2507 | 40 | 40 | 50 | 250 | 48 |
* Non Stock Items, subject to extended delivery time
| PRSCL/ | R Spare Pa | rts | ||||||||||
| Item Description | Lever EDP | Lever Screw EDP | Anvil EDP | Anvil Clip EDP | Clip Punch EDP | Key EDP | ||||||
| PRSCL/R 2020 K10 | 034475 | PL8110 | 034480 | PLS1705 | 034484 | PA3810 | 028578 | KH5002 | ||||
| PRSCL/R 2525 M10 | 028417 | PC4110 | 028053 | PCP0009 | ||||||||
| PRSCL/R 2020 K12 | 034476 | PL8112 | 017447 | PLS1606 | 034485 | PA3812 | ||||||
| PRSCL/R 2525 M12 | ||||||||||||
| PRSCL/R 2525 M16 PRSCL/R 3232 P16 | 034477 | PL8116 | 034481 | PLS1706 | 034486 | PA3816 | 034504 | PC4116 | 028054 | PCP0012 | 018285 | KH5025 |
| PRSCL/R 3232 P20 | 034478 | PL8120 | 028458 | PLS1708 | 034487 | PA3820 | 028051 | PC4115 | 034505 | PCP0015 | 018286 | KH5003 |
| PRSCL/R 4040 S25 | 034479 | PL8125 | 034482 | PLS1710 | 034488 | PA3825 | 017455 | PC4119 | 028056 | PCP0019 | 018287 | KH5004 |
