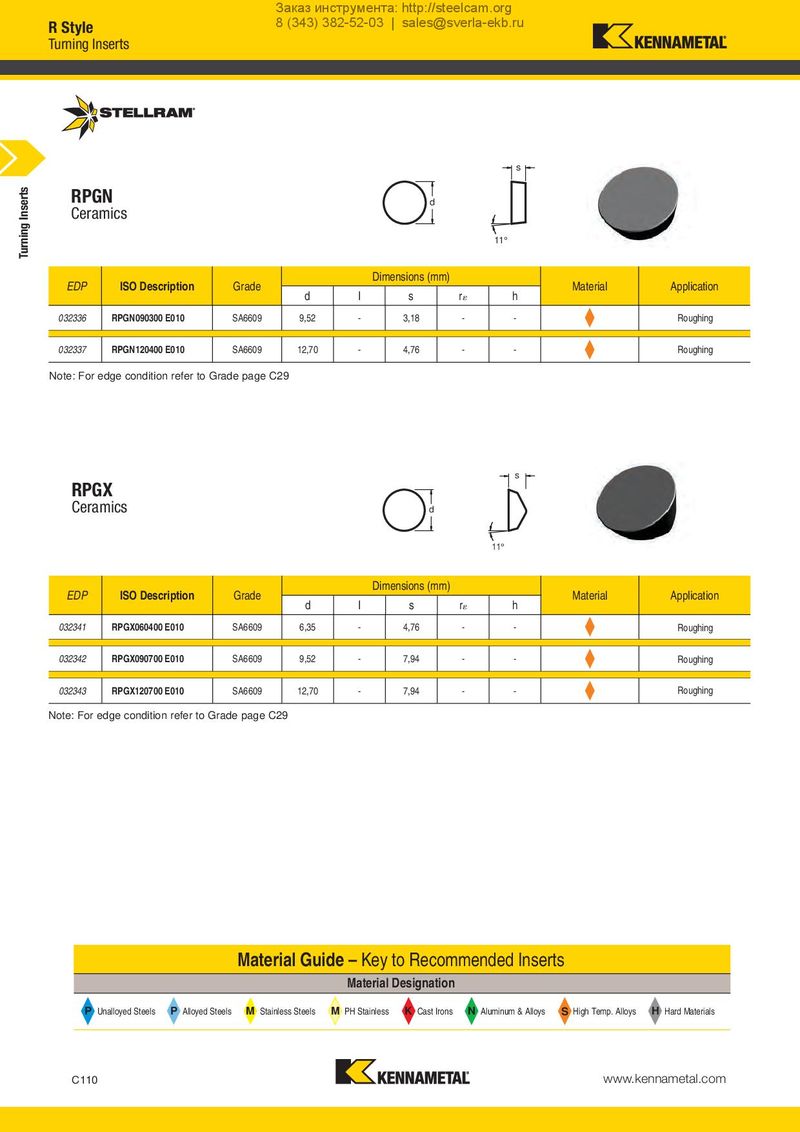

Заказ инструмента: http://steelcam.org R Style 8 (343) 382-52-03 | sales@sverla-ekb.ru Turning Inserts s Turning Inserts RPGN d Ceramics 11° EDP ISO Description Grade Dimensions (mm) Material Application d I s r h 032336 RPGN090300 E010 SA6609 9,52 - 3,18 - - Roughing 032337 RPGN120400 E010 SA6609 12,70 - 4,76 - - Roughing Note: For edge condition refer to Grade page C29 s RPGX Ceramics d 11° EDP ISO Description Grade Dimensions (mm) Material Application d I s r h 032341 RPGX060400 E010 SA6609 6,35 - 4,76 - - Roughing 032342 RPGX090700 E010 SA6609 9,52 - 7,94 - - Roughing 032343 RPGX120700 E010 SA6609 12,70 - 7,94 - - Roughing Note: For edge condition refer to Grade page C29 Material Guide – Key to Recommended Inserts Material Designation P Unalloyed Steels P Alloyed Steels M Stainless Steels M PH Stainless K Cast Irons N Aluminum & Alloys S High Temp. Alloys H Hard Materials C110 www.kennametal.com
