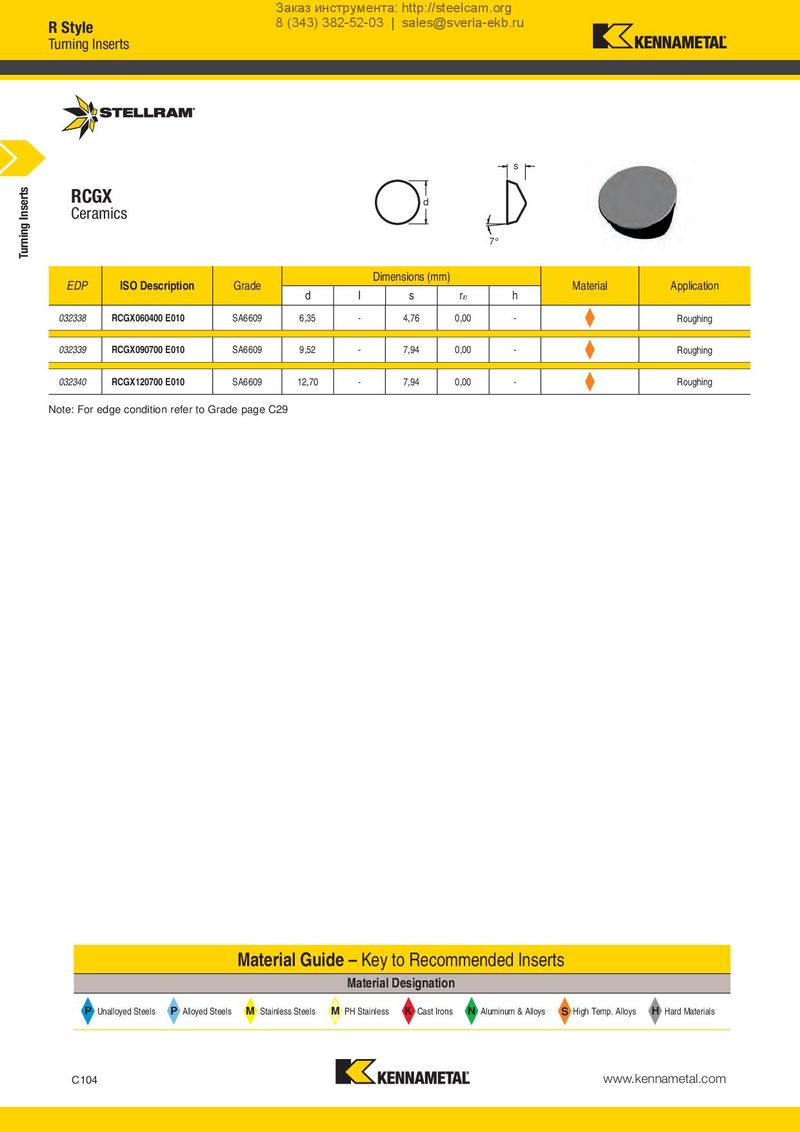

Заказ инструмента: http://steelcam.org R Style 8 (343) 382-52-03 | sales@sverla-ekb.ru Turning Inserts s Turning Inserts RCGX d Ceramics 7° EDP ISO Description Grade Dimensions (mm) Material Application d I s r h 032338 RCGX060400 E010 SA6609 6,35 - 4,76 0,00 - Roughing 032339 RCGX090700 E010 SA6609 9,52 - 7,94 0,00 - Roughing 032340 RCGX120700 E010 SA6609 12,70 - 7,94 0,00 - Roughing Note: For edge condition refer to Grade page C29 Material Guide – Key to Recommended Inserts Material Designation P Unalloyed Steels P Alloyed Steels M Stainless Steels M PH Stainless K Cast Irons N Aluminum & Alloys S High Temp. Alloys H Hard Materials C104 www.kennametal.com
