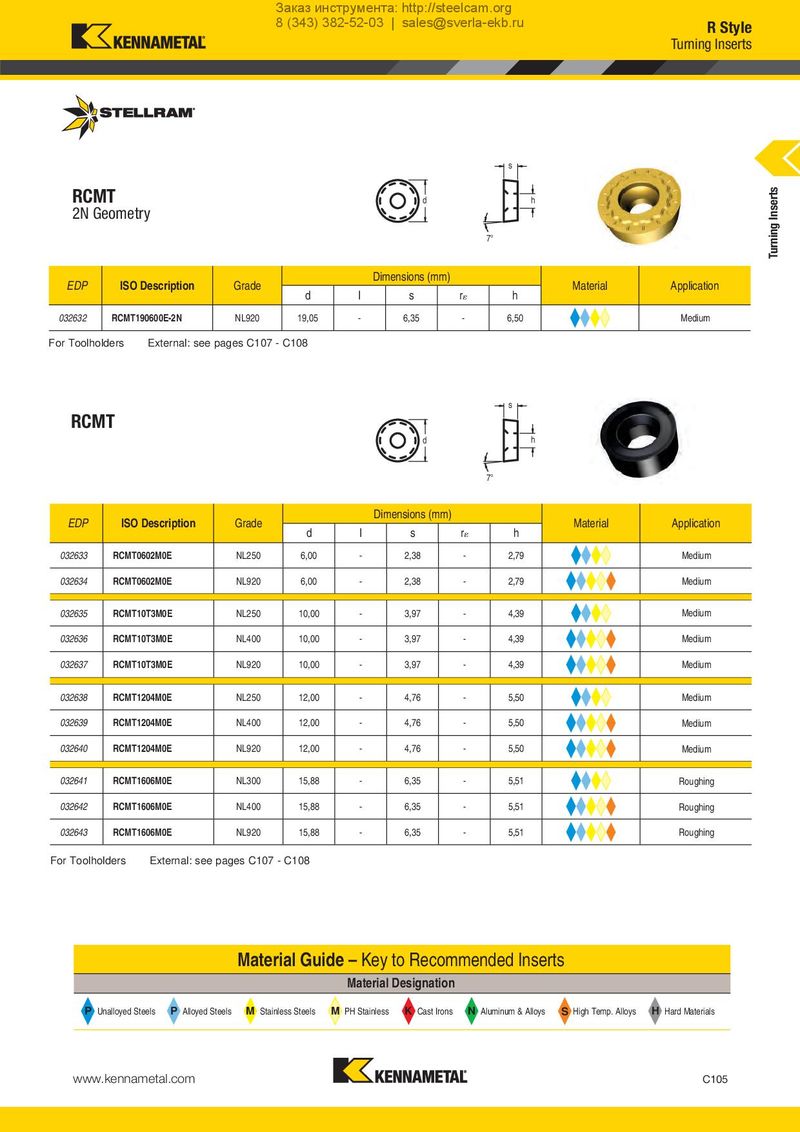

| RCMT 2N Geometry | | | d | 7° s h | |
| EDP ISO Description | Grade | d | Dimensions(mm I s | ) r h | Material Application |
| 032632 RCMT190600E-2N r Toolholders External: see | NL920 pages C107 - | 19,05 C108 | - 6,35 | - 6,50 | Medium |
| RCMT | | | d | 7° s h | |
| EDP | ISO Description | Grade | | Di | mensions(m | m) | | Material | Application |
| | | d | I | s | r | h | | |
| 032633 | RCMT0602M0E | NL250 | 6,00 | - | 2,38 | - | 2,79 | | Medium |
| 032634 | RCMT0602M0E | NL920 | 6,00 | - | 2,38 | - | 2,79 | | Medium |
| 032635 | RCMT10T3M0E | NL250 | 10,00 | - | 3,97 | - | 4,39 | | Medium |
| 032636 | RCMT10T3M0E | NL400 | 10,00 | - | 3,97 | - | 4,39 | | Medium |
| 032637 | RCMT10T3M0E | NL920 | 10,00 | - | 3,97 | - | 4,39 | | Medium |
| 032638 | RCMT1204M0E | NL250 | 12,00 | - | 4,76 | - | 5,50 | | Medium |
| 032639 | RCMT1204M0E | NL400 | 12,00 | - | 4,76 | - | 5,50 | | Medium |
| 032640 | RCMT1204M0E | NL920 | 12,00 | - | 4,76 | - | 5,50 | | Medium |
| 032641 | RCMT1606M0E | NL300 | 15,88 | - | 6,35 | - | 5,51 | | Roughing |
| 032642 | RCMT1606M0E | NL400 | 15,88 | - | 6,35 | - | 5,51 | | Roughing |
| 032643 | RCMT1606M0E | NL920 | 15,88 | - | 6,35 | - | 5,51 | | Roughing |
For Toolholders External: see pages C107 - C108
| | Material Gu | ide –Keyto Recommended Inserts Material Designation |
| P Unalloyed Steels | P Alloyed Steels | M Stainless Steels | M K N S H PH Stainless Aluminum & Alloys High Temp. Alloys Hard Materials Cast Irons |
