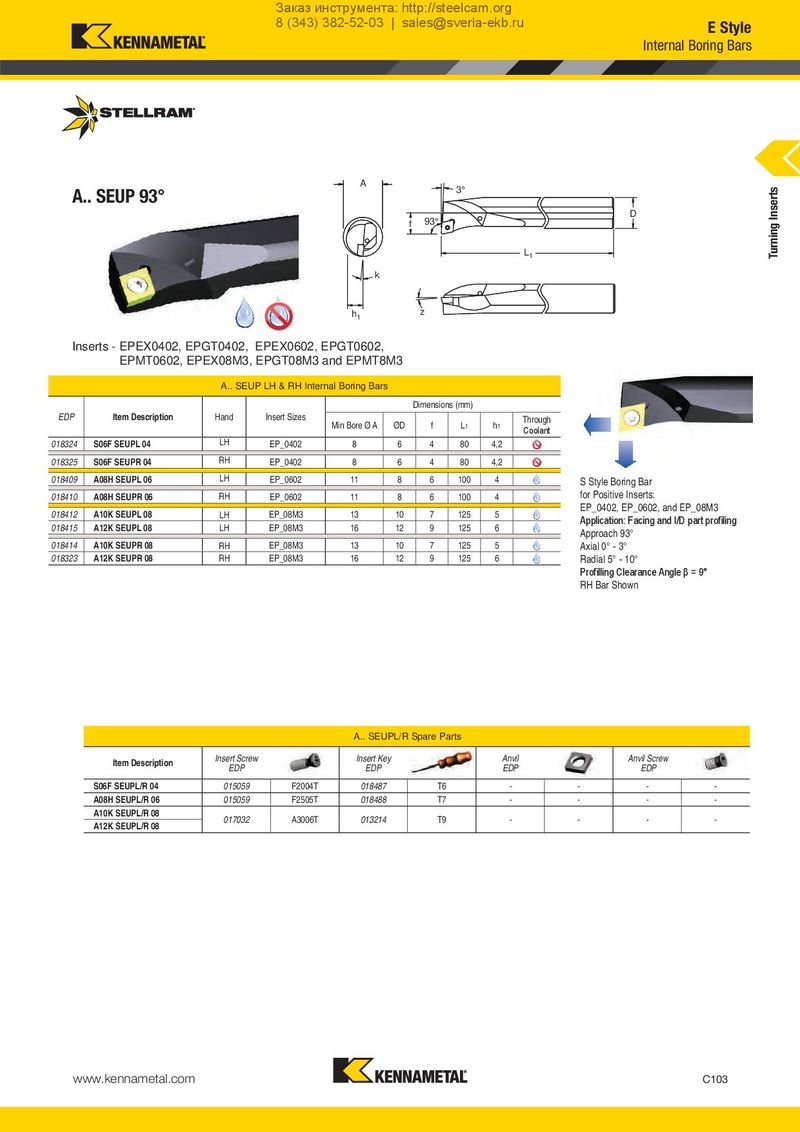

Заказ инструмента: http://steelcam.org 8 (343) 382-52-03 | sales@sverla-ekb.ru E Style Internal Boring Bars A 3° Turning Inserts A.. SEUP 93° 93° D f L1 k h1 z Inserts - EPEX0402, EPGT0402, EPEX0602, EPGT0602, EPMT0602, EPEX08M3, EPGT08M3 and EPMT8M3 A.. SEUP LH & RH Internal Boring Bars Dimensions (mm) EDP Item Description Hand Insert Sizes Min Bore Ø A ØD f L1 h1 Through Coolant 018324 S06F SEUPL 04 LH EP_0402 8 6 4 80 4,2 018325 S06F SEUPR 04 RH EP_0402 8 6 4 80 4,2 018409 A08H SEUPL 06 LH EP_0602 11 8 6 100 4 S Style Boring Bar 018410 A08H SEUPR 06 RH EP_0602 11 8 6 100 4 for Positive Inserts: 018412 A10K SEUPL 08 LH EP_08M3 13 10 7 125 5 EP_0402, EP_0602, and EP_08M3 018415 A12K SEUPL 08 LH EP_08M3 16 12 9 125 6 Application: Facing and I/D part profiling Approach 93° 018414 A10K SEUPR 08 RH EP_08M3 13 10 7 125 5 Axial 0° - 3° 018323 A12K SEUPR 08 RH EP_08M3 16 12 9 125 6 Radial 5° - 10° Profilling Clearance Angle β = 9° RH Bar Shown A.. SEUPL/R Spare Parts Item Description Insert Screw Insert Key Anvil Anvil Screw EDP EDP EDP EDP S06F SEUPL/R 04 015059 F2004T 018487 T6 - - - - A08H SEUPL/R 06 015059 F2505T 018488 T7 - - - - A10K SEUPL/R 08 017032 A3006T 013214 T9 - - - - A12K SEUPL/R 08 www.kennametal.com C103
