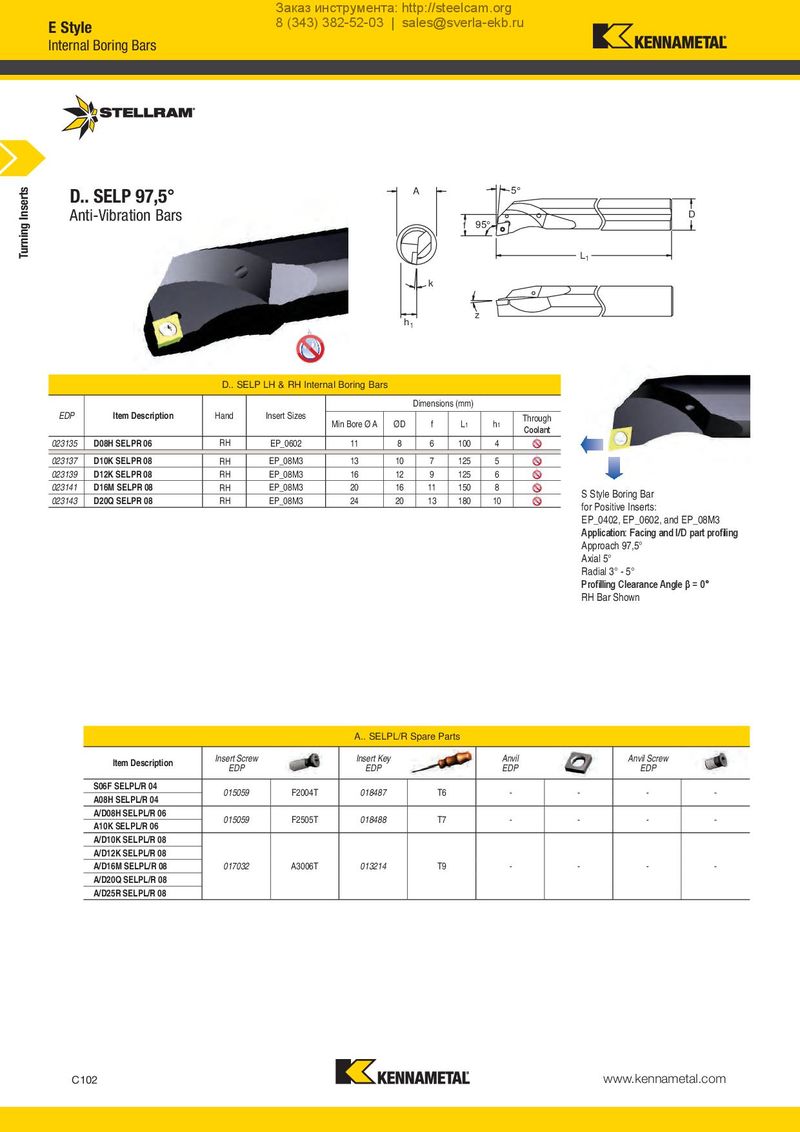

Заказ инструмента: http://steelcam.org E Style 8 (343) 382-52-03 | sales@sverla-ekb.ru Internal Boring Bars Turning Inserts D.. SELP 97,5° A 5° Anti-Vibration Bars D f 95° L1 k h1 z D.. SELP LH & RH Internal Boring Bars Dimensions (mm) EDP Item Description Hand Insert Sizes Min Bore Ø A ØD f L1 h1 Through Coolant 023135 D08H SELPR 06 RH EP_0602 11 8 6 100 4 023137 D10K SELPR 08 RH EP_08M3 13 10 7 125 5 023139 D12K SELPR 08 RH EP_08M3 16 12 9 125 6 023141 D16M SELPR 08 RH EP_08M3 20 16 11 150 8 S Style Boring Bar 023143 D20Q SELPR 08 RH EP_08M3 24 20 13 180 10 for Positive Inserts: EP_0402, EP_0602, and EP_08M3 Application: Facing and I/D part profiling Approach 97,5° Axial 5° Radial 3° - 5° Profilling Clearance Angle β = 0° RH Bar Shown A.. SELPL/R Spare Parts Item Description Insert Screw Insert Key Anvil Anvil Screw EDP EDP EDP EDP S06F SELPL/R 04 015059 F2004T 018487 T6 - - - - A08H SELPL/R 04 A/D08H SELPL/R 06 015059 F2505T 018488 T7 - - - - A10K SELPL/R 06 A/D10K SELPL/R 08 A/D12K SELPL/R 08 A/D16M SELPL/R 08 017032 A3006T 013214 T9 - - - - A/D20Q SELPL/R 08 A/D25R SELPL/R 08 C102 www.kennametal.com
