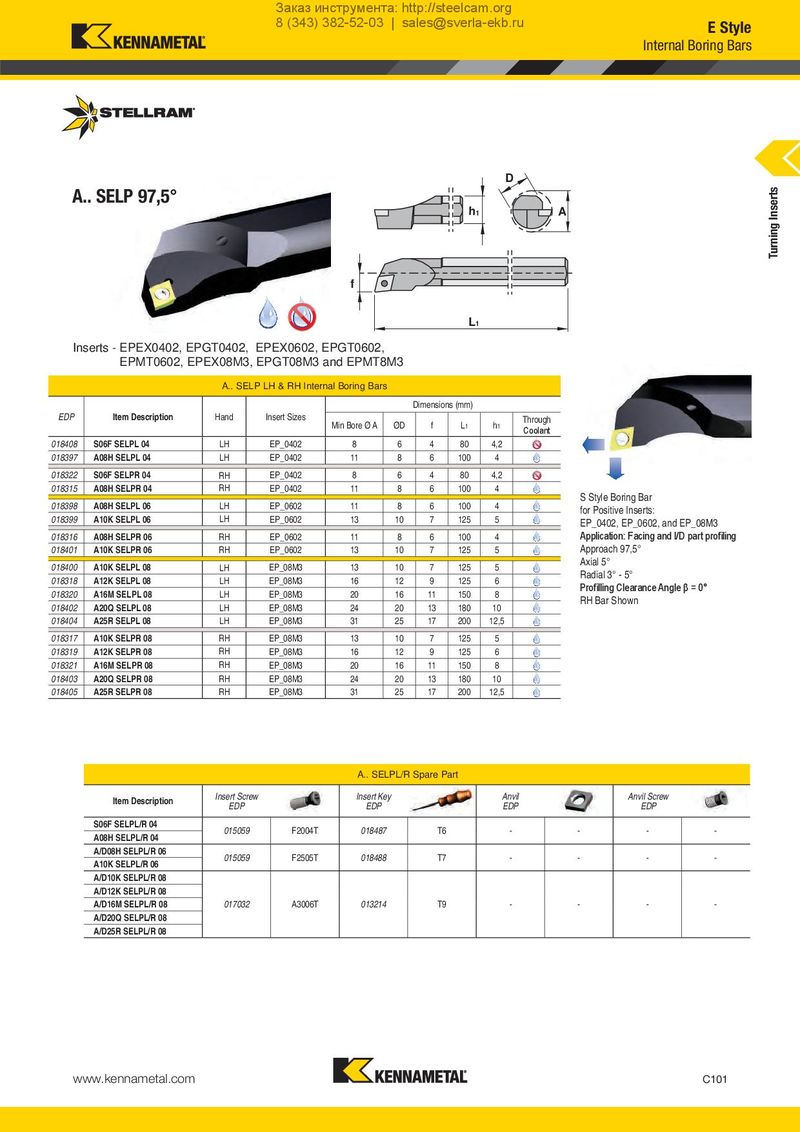

Заказ инструмента: http://steelcam.org 8 (343) 382-52-03 | sales@sverla-ekb.ru E Style Internal Boring Bars D A.. SELP 97,5° Turning Inserts h1 A f L1 Inserts - EPEX0402, EPGT0402, EPEX0602, EPGT0602, EPMT0602, EPEX08M3, EPGT08M3 and EPMT8M3 A.. SELP LH & RH Internal Boring Bars Dimensions (mm) EDP Item Description Hand Insert Sizes Min Bore Ø A ØD f L1 h1 Through Coolant 018408 S06F SELPL 04 LH EP_0402 8 6 4 80 4,2 018397 A08H SELPL 04 LH EP_0402 11 8 6 100 4 018322 S06F SELPR 04 RH EP_0402 8 6 4 80 4,2 018315 A08H SELPR 04 RH EP_0402 11 8 6 100 4 S Style Boring Bar 018398 A08H SELPL 06 LH EP_0602 11 8 6 100 4 for Positive Inserts: 018399 A10K SELPL 06 LH EP_0602 13 10 7 125 5 EP_0402, EP_0602, and EP_08M3 018316 A08H SELPR 06 RH EP_0602 11 8 6 100 4 Application: Facing and I/D part profiling 018401 A10K SELPR 06 RH EP_0602 13 10 7 125 5 Approach 97,5° 018400 A10K SELPL 08 LH EP_08M3 13 10 7 125 5 Axial 5° 018318 A12K SELPL 08 LH EP_08M3 16 12 9 125 6 Radial 3° - 5° 018320 A16M SELPL 08 LH EP_08M3 20 16 11 150 8 Profilling Clearance Angle β = 0° 018402 A20Q SELPL 08 LH EP_08M3 24 20 13 180 10 RH Bar Shown 018404 A25R SELPL 08 LH EP_08M3 31 25 17 200 12,5 018317 A10K SELPR 08 RH EP_08M3 13 10 7 125 5 018319 A12K SELPR 08 RH EP_08M3 16 12 9 125 6 018321 A16M SELPR 08 RH EP_08M3 20 16 11 150 8 018403 A20Q SELPR 08 RH EP_08M3 24 20 13 180 10 018405 A25R SELPR 08 RH EP_08M3 31 25 17 200 12,5 A.. SELPL/R Spare Part Item Description Insert Screw Insert Key Anvil Anvil Screw EDP EDP EDP EDP S06F SELPL/R 04 015059 F2004T 018487 T6 - - - - A08H SELPL/R 04 A/D08H SELPL/R 06 015059 F2505T 018488 T7 - - - - A10K SELPL/R 06 A/D10K SELPL/R 08 A/D12K SELPL/R 08 A/D16M SELPL/R 08 017032 A3006T 013214 T9 - - - - A/D20Q SELPL/R 08 A/D25R SELPL/R 08 www.kennametal.com C101
